Welcome to Tibero GTS!

NCP (Naver Cloud Platform) Server Specification Information

Document Type | Technical Information

Field | Administration/Configuration

Applicable Product Versions | 6FS07PS, 6FS07PS, 7FS02, 7FS02PS

Document Number | TADTI004



Overview

This provides server information for using the Naver Cloud Platform and services required for Tibero configuration.

Note
For detailed information about the server, please refer to the โ€œNaver Cloud Platform User Guideโ€.



Method

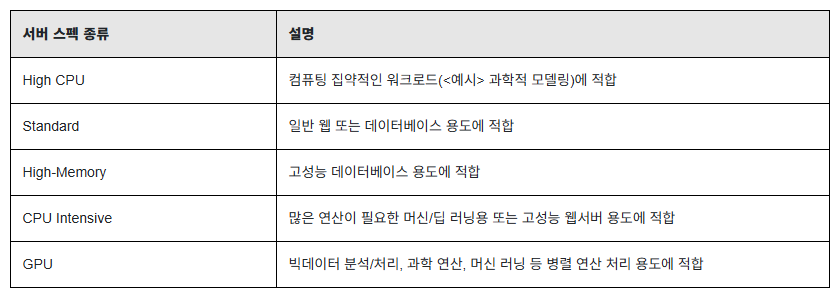

Private Cloud - VPC Platform Standard Server Specs

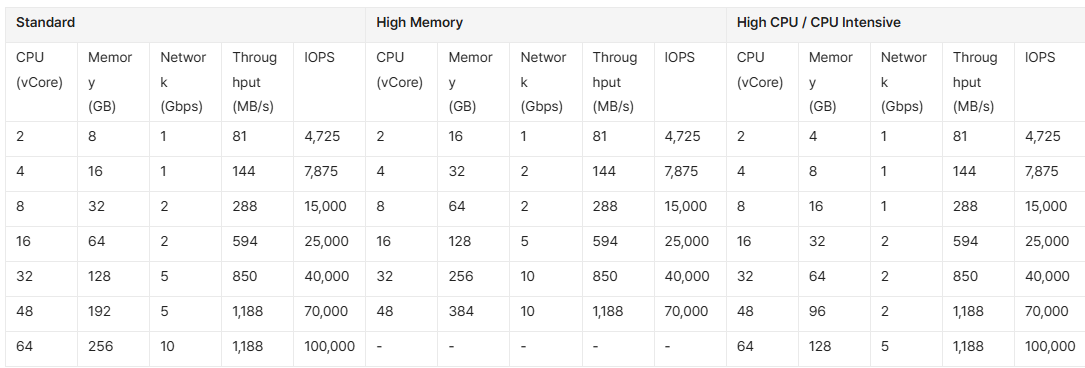

Server Specs (KVM)

The network speed, throughput, and IOPS according to the KVM server specs are as follows.

Caution
For XEN, information is currently not available in the Naver Cloud manual.



Storage Specifications



KVM

Storage is classified as FB1/FB2 (HDD) or CB1/CB2 (SSD) depending on user selection.

  • For HDD, the IOPS is fixed at 500 regardless of storage size.
  • For SSD, storage sizes between 10 GB and 30 GB provide 100 IOPS, and thereafter increase by 3 IOPS per 1 GB, up to a maximum of 16,000 IOPS.
  • SSD storage throughput is provided at 100 MB/s up to 150 GB, increasing by 1 MB/s per 1 GB thereafter, up to a maximum of 250 MB/s.

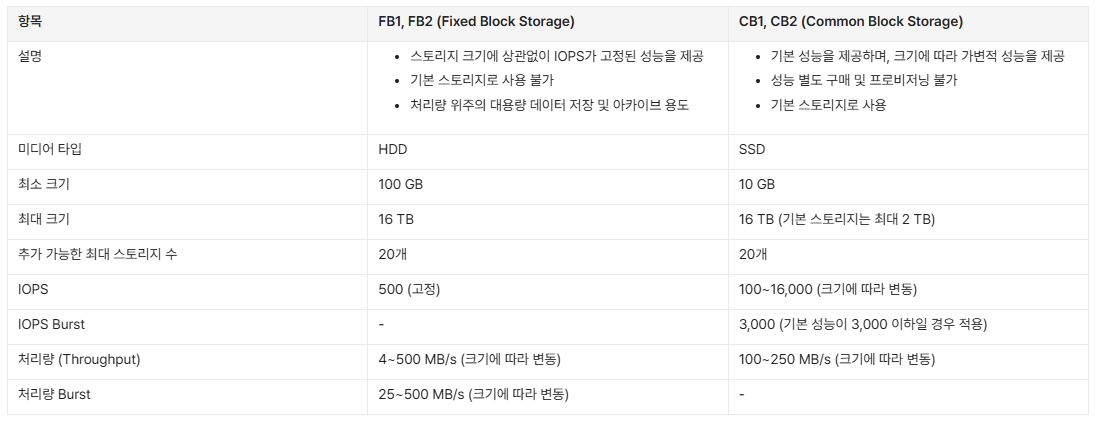

[KVM-based Storage Specifications]
Storage available on 3rd generation KVM-based servers is categorized by type according to usage and purpose. The storage specifications by type are as follows.






XEN

Storage is classified as HDD or SSD depending on user selection.

  • For SSD storage, 4,000 IOPS is provided for the 10GB to 100GB range.
  • Thereafter, IOPS increases by 40 per 1GB up to a maximum of 20,000 IOPS.

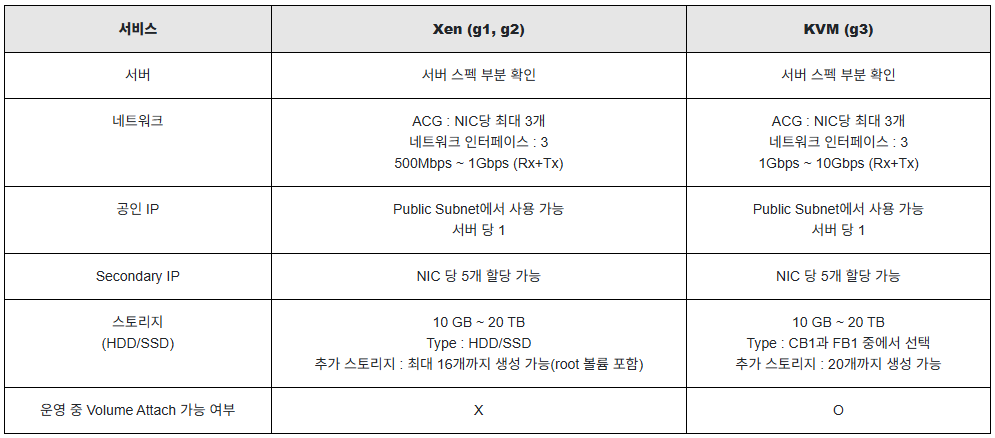

[XEN-based Storage Specifications]
Storage available on 3rd generation XEN-based servers is categorized by type according to usage and purpose. The storage specifications by type are as follows.

Note

  • The maximum number of additional storages is the count excluding the basic storage. One basic storage is provided when creating the server, and up to 15 additional storages can be added.
  • For SSD block storage, 4,000 IOPS is provided for the 10 GB to 100 GB range, increasing by 40 IOPS per 1GB thereafter. It provides up to 20,000 IOPS (4 KiB I/O).

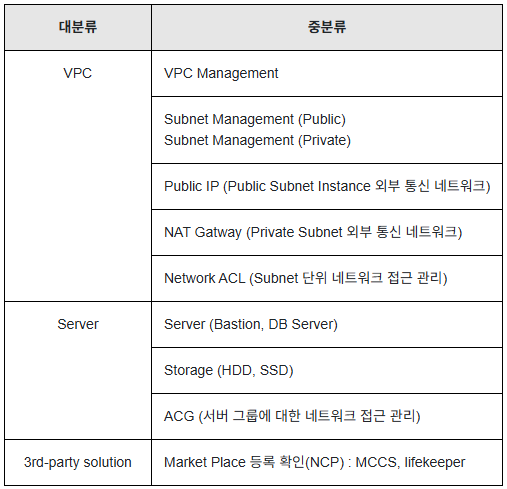

NCP Services Required for Tibero Configuration

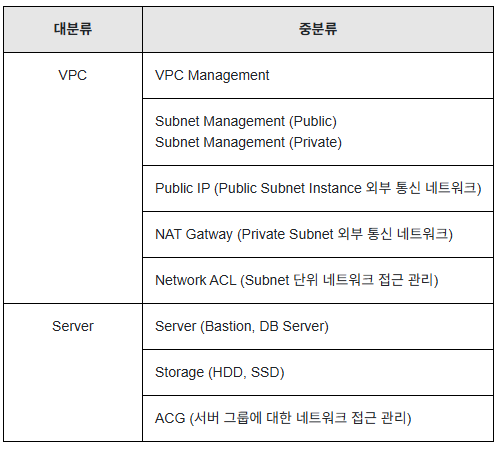

Tibero - Single Configuration





Tibero - HA Configuration

Note
This information was confirmed based on the NCP console.
