Setting up MS-SQL DBLink in Tibero (Windows) (1)

Document Type | Technical Information

Category | Interface/Integration

Document Number | TIITI029



Overview

You can use the DBLink feature to integrate Tibero with MS-SQL.

This article explains the concept and overall structure of MS-SQL DBLink, and guides you through setting the TBGW_HOME environment variable, copying and extracting the Java Gateway to prepare for integration.


MS-SQL DBLink

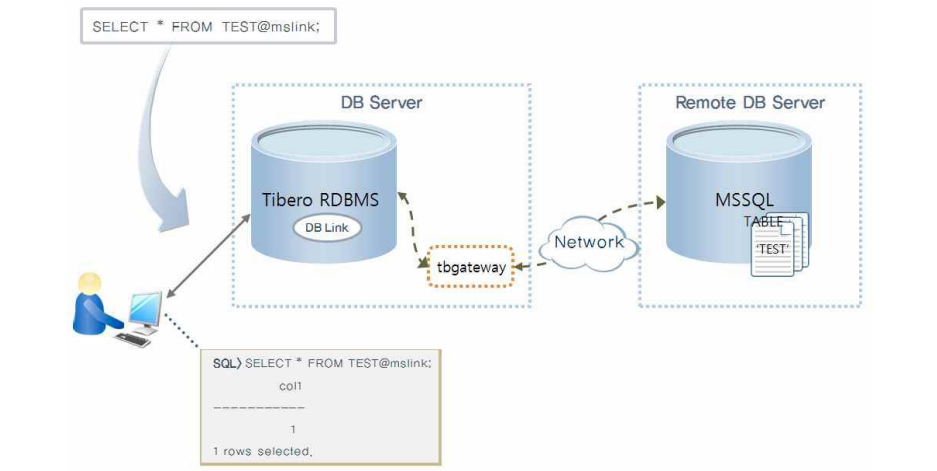

The DBLink feature provided by Tibero RDBMS supports querying, inserting, updating, and deleting tables on a remote MS-SQL server. MS-SQL DBLink connects through the Java Gateway and returns the query results requested by the user via the following process path.
MS-SQL DBLink

Note

The DBLink setup was performed in the following environment.
  • OS: Windows
  • DBMS: Tibero, MS-SQL





Method

Installing Java Gateway

You can copy the Java Gateway to your desired directory and extract it to use.

For ease of management, this article specifies the TBGW_HOME environment variable and copies it to that directory to proceed with the setup.


Setting Environment Variable

Check if the TBGW_HOME environment variable is set in the command prompt.
C:\Users\kar>echo %TBGW_HOME%
%TBGW_HOME%
If the output appears as above, it means the variable is not set yet. If a path is displayed, it is already set, so you can proceed to the Gateway extraction step.

You can register the environment variable at the following location:
  • Setting Path
    Right-click [My Computer] โ†’ [Properties] โ†’ [Advanced system settings] โ†’ [Advanced] tab โ†’ [Environment Variables] โ†’ System Variables [New]
  • Setting Value
    Variable Name: TBGW_HOME
    Variable Value: Gateway home directory (e.g., C:\TmaxData\gateway )


After setting, open a new command prompt window and run the command below to verify that it is properly registered.
C:\Users\kar>echo %TBGW_HOME%
C:\TmaxData\gateway



Extracting Gateway

mssql Create a directory named mssql, then copy the Java Gateway compressed file located under the engine directory.
C:\Users\kar>mkdir %TBGW_HOME%\mssql

Tibero6
copy %TB_HOME%\client\bin\tbJavaGW.zip %TBGW_HOME%\mssql\.

Tibero5
copy %TB_HOME%\client\bin\tbgateway.zip %TBGW_HOME%\mssql\.
Using a compression utility to extract the Java Gateway files will create a tbJavaGW directory.

After extraction, the directory includes the following files:
  • lib: Library directory
  • jgw_service.bat: Java Gateway executable (for Tibero 5 version, it is tbgw.bat)
  • jgw.cfg: Java Gateway configuration file
  • jgwlog.properties: Java Gateway log configuration file
