Welcome to Tibero GTS!

ODBC / OLEDB Log Collection Method

Document Type | Technical Information

Category | Migration

Applicable Product Version | 7FS02PS

Document Number | TMITI028



Overview

Set up CLI logs to record the connection and operation history of clients connecting to the database via CLI.

These logs can be used for root cause analysis and troubleshooting when issues occur in CLI-based programs such as tbESQL, tbsql, ODBC, etc.

Set up OLE DB logs to record connection and SQL execution information for applications connecting to the database via OLE DB. These logs can be used for root cause analysis and troubleshooting in case of connection errors, SQL execution failures, etc., in ADO (VB, etc.) environments.





Method

1. Environment Variables

ODBC (tbCLI) Environment Variables

When setting tbCLI logs, you must specify environment variables. The main environment variables are as follows.

Environment VariableMeaningDefault ValueExample
TBCLI_LOG_LVL
  • Sets the log level that TBCLI records in the log file. If not set, no logs are recorded.
  • Available values are as follows, with more detailed logs recorded in the order shown. (FATAL/ERROR/WARN/INFO/DEBUG/TRACE/INTERNAL)
NoneTRACE
TBCLI_LOG_DIR
  • Specifies the directory location where TBCLI leaves the log file.
  • The log file name format is tbcli_YYYYMMDDHHMMSS_PID.log.
  • UNIX or Linux : /tmp
  • window : C:\\
$TB_HOME/tbcli_log
TB_NLS_LANGSets the character set of the client. The default is MSWIN949 (Korean).
Usually, it is set to match or be a subset of the DB character set. The values that can be set are the same as the DB character set.		MSWIN949MSWIN949



The log level types for the TBCLI_LOG_LVL parameter are as follows.

LevelDescription
FATALUsed when a critical error occurs (program needs to stop)
ERRORError occurs, but the operation continues
WARNNot an error, but requires attention
INFORecords general operation and status information
DEBUGRecords major progress details (e.g., API calls)
TRACERecords very detailed debugging information (e.g., memory dumps, etc.)
INTERNALHighest level of detailed logging (for internal debugging, lock information, etc.)



OLEDB Environment Variables

Currently, Tibero does not support OLE DB, and recommends using MSDASQL in ADO (VB) environments and TDP.NET in ADO.NET (C#, VB NET) environments.

When using MSDASQL, you can apply the Tibero ODBC environment variables described above and verify with the tbCLI log.

When using TDP.NET, you must set environment variables. The Windows environment variables are as follows.

Environment VariableDescription
TDPNET_LOG_PATHSpecifies the path where the log file is created
TDPNET_LOG_LVL
  • Specifies the log level
  • Currently, TDP.NET supports only TRACE level





2. Configuration Method

ODBC (tbCLI) Log Configuration Method

tbCLI log environment variables can be set in the tbdsn.tbr file or as environment variables. If both are set, the tbdsn.tbr setting takes precedence.

How to set tbdsn.tbr

tibero7=(
    (INSTANCE=(HOST=localhost)
              (PORT=8629)
              (DB_NAME=tibero7)
    )
)

TBCLI_LOG_LVL=TRACE
TBCLI_LOG_DIR=/home/tibero/cli_log



How to set environment variables

- Unix or Linux environment

$ export TBCLI_LOG_LVL=TRACE
$ export TBCLI_LOG_DIR=/home/tibero/cli_log



- Windows environment

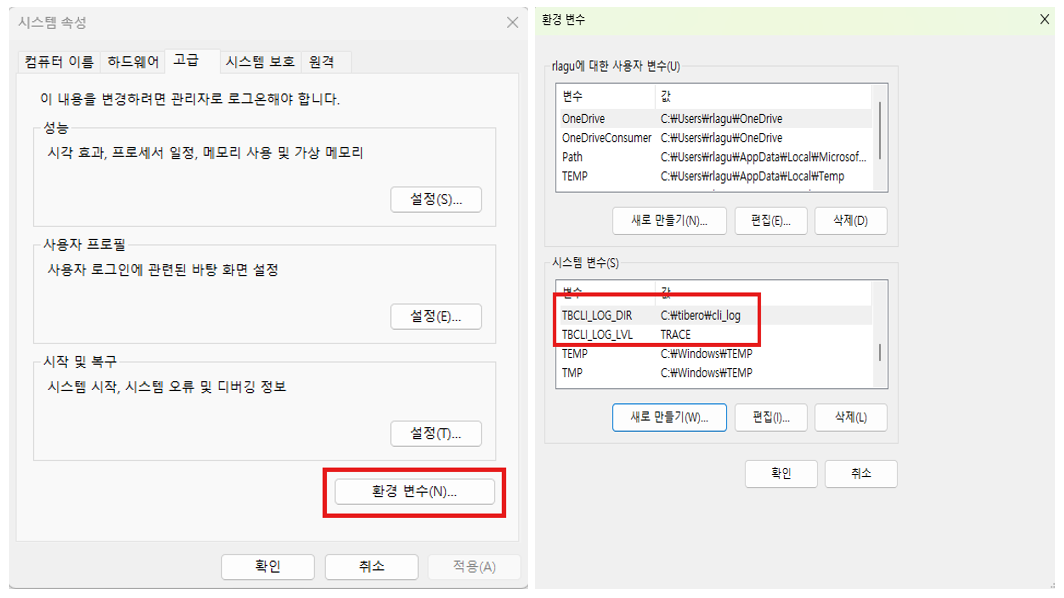

Set the environment variables in [System Properties].



OLE DB Log Configuration Method

How to set when using MSDASQL

When using MSDASQL, proceed in the same way as setting tbCLI log environment variables in the Windows environment.



How to set when using TDP.NET

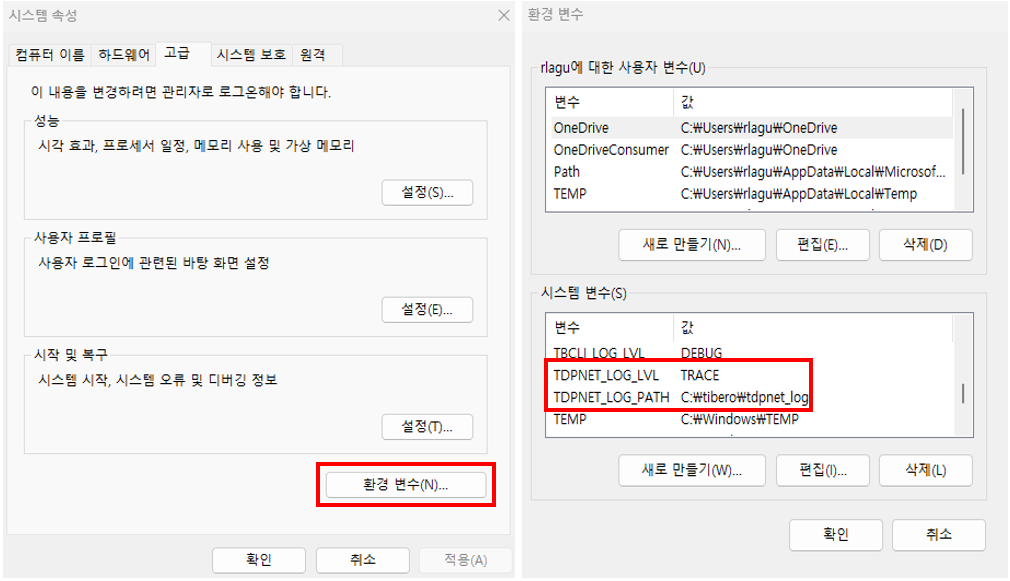

Set the TDP.NET log environment variables in the Windows environment [System Properties].
