Welcome to Tibero GTS!

Python + Tibero Integration

Document Type | Technical Information

Category | Interface/Integration

Applicable Product Version | 7FS02PS

Document Number | TIITI048



Overview

This document describes the method for integrating Python with Tibero.



Test Environment

OS: RHEL 10

DB: Tibero 7.2.4

Python: 3.12





Method

1. Install Python (run as root)

A. Install Python3

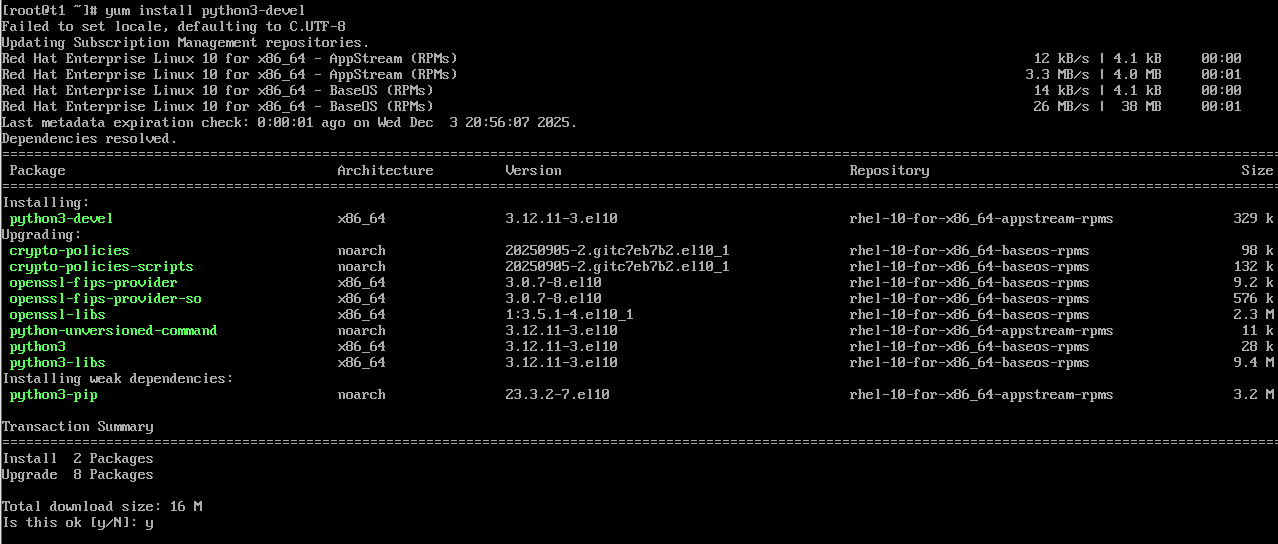

yum install python3-devel



B. Change Python settings (optional)

In this environment, version 2.7 was installed and 3.12 was additionally installed.

1) Check the Python version and location set by the OS

python โ€“V

which python

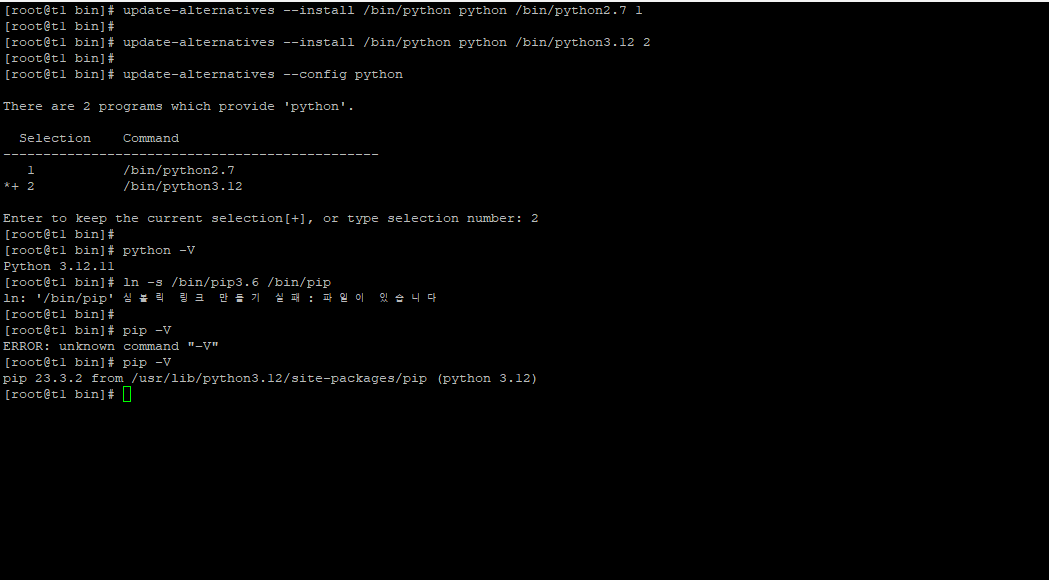

2) Change the default Python setting of the OS

update-alternatives --install /bin/python python /bin/python2.7 1

update-alternatives --install /bin/python python /bin/python3.12 2

update-alternatives --config python (select option 2)

python -V

ln -s /bin/pip3.6 /bin/pip

pip -V

3) Change settings due to yum errors

If an error occurs when running yum after changing the OS default Python version, perform the following steps:

 - In the files /usr/bin/yum and /usr/libexec/urlgrabber-ext-down, change the first line #!/usr/bin/python to

#!/usr/bin/python2.7



2. Install ODBC

A. Install ODBC

yum install unixODBC (unixODBC-devel is not provided by default from RHEL 9 onwards)



B. Install pyodbc

yum install gcc-c++

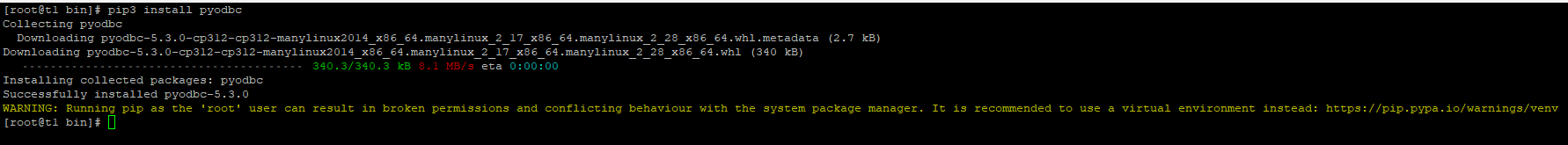

pip3 install pyodbc (If you configured item 1.B, you can install using the pip command instead of pip3)

C. Configure iodbc.ini

Configure /etc/odbc.ini or create .odbc.ini in the userโ€™s home directory (creation needed)

1) When configuring tbdsn.tbr

[ODBC Data Sources]
tibero7 = Tibero7 ODBC driver                  => DSN name used in isql and Python

[ODBC]
Trace = 1                                             => Log level
TraceFile = /home/python/.odbc.trace         => Path and filename for ODBC-related logs

[tibero7]                                               => Must match the red name above
Driver = /home/python/tibero7/client/lib/libtbodbc.so   => Absolute path to Tiberoโ€™s libtbodbc.so
Description = Tibero7 ODBC Datasource
SID = TDB1                                                          => Alias in tbdsn.tbr
User = tibero                                                        => Tibero user to connect with
Password = tmax                                                   => Password for the Tibero user

2) When not configuring tbdsn.tbr

[ODBC Data Sources]
tibero7 = Tibero7 ODBC driver                  => DSN name used in isql and Python

[ODBC]
Trace = 1                                             => Log level
TraceFile = /home/python/.odbc.trace         => Path and filename for ODBC-related logs

[tibero7]                                               => Must match the red name above
Driver = /home/python/tibero7/client/lib/libtbodbc.so   => Absolute path to Tiberoโ€™s libtbodbc.so
Description = Tibero7 ODBC Datasource

Server = 192.168.131.128                                                     => Tibero IP to connect

Port = 8629                                                              => Tibero Port to connect
User = tibero                                                        => Tibero user to connect
Password = tmax                                                   => Password for the Tibero user

Database = TDB1                                                   => Tibero DB Name to connect



3. Install Tibero Client

A. Configure tbdsn.tbr

TDB1 =(

    (INSTANCE=(HOST=192.168.131.128  )

              (PORT=8629)

              (DB_NAME=TDB1 )

    )

)

B. Set environment variables

Add the following content to the user profile

export TB_HOME=/home/python/tibero/

export PATH=.:$TB_HOME/client/bin:$PATH

export LD_LIBRARY_PATH=.:$TB_HOME/client/lib:$LD_LIBRARY_PATH



C. Connection test using tbsql (only possible if Tibero Client is installed)

tbsql tibero/tmax@TDB1



4. ODBC Connection Test

A. When tbdsn.tbr is configured

Test by running isql -v tibero7

5. Python + Tibero Integration

 A. Confirm pyodbc import

Create a test.py file with the following content and run python test.py. There should be no errors.

import pyodbc

B. Integration test using Python sample code

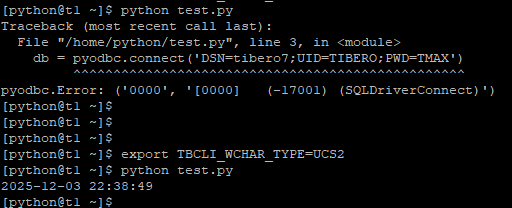

Run the sample source below. If using Python 3 or higher, the environment variable export TBCLI_WCHAR_TYPE=ucs2 must be set.

import pyodbc



db = pyodbc.connect ('DSN=tibero;UID=tibero;PWD=tmax')

db.setdecoding(pyodbc.SQL_CHAR, encoding='utf-8')

db.setdecoding(pyodbc.SQL_WCHAR, encoding='utf-8')

db.setdecoding(pyodbc.SQL_WMETADATA, encoding='utf-32le')

db.setencoding(encoding='utf-8')

cursor = db.cursor()



cursor.execute('select * from python_test;')

data = cursor.fetchall()



for x in data:

print (x[0])                     -- The following line after the Python for loop should be indented



cursor.close()

db.close()



The red code lines are required if encoding-related errors occur
