Welcome to Tibero GTS!

Tibero OCI Setup and Examples

Document Type | Technical Information

Category | Interface/Integration

Applicable Product Versions | Tibero6, Tibero7

Document Number | TIITI070





Overview

This guide explains how to connect to the Tibero server in a Windows environment using the Oracle Call Interface (OCI) library.

Note

Testing was conducted in the following environment.
  • OS: Windows 10 (64 bit)
  • DB: Tibero 6 FS06
  • IDE: VS 2017





Method

OCI Installation

1. Copy OCI Library

Copy the library files included in the Tibero binary (%TB_HOME%binlibtboci.lib, %TB_HOME%binlibtboci.dll) to the client Windows machine where you want to use them.
Caution
Only the 32/64 bit version of the Tibero binary is built accordingly. Copy from the binary with the same bit version that matches the platform bit of the application you want to compile.


2. Copy Oracle OCI Headers

$ORACLE_HOME/rdbms/public folder, copy the .h files located there to the client Windows machine.


3. Add Environment Settings

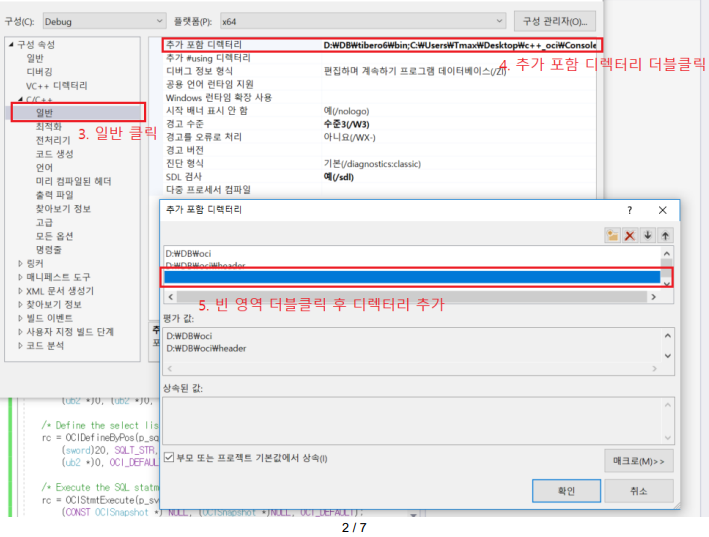

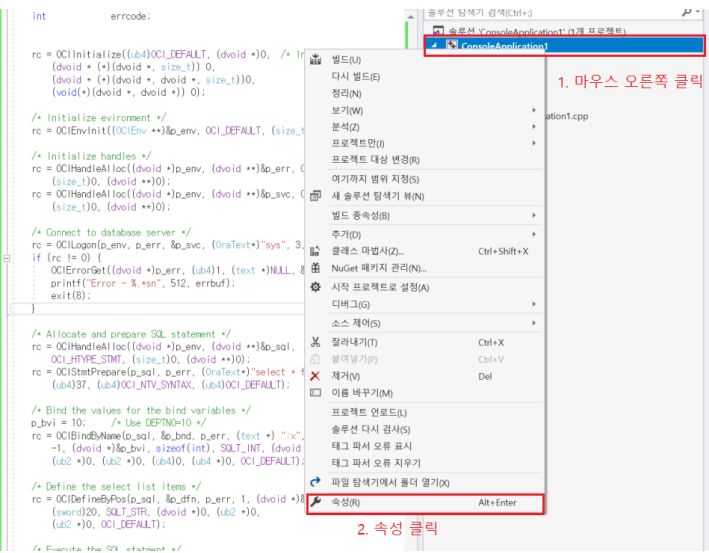

1) Add library and header file directories on the [C/C++] - [General] tab in the property page under [Project] - [Properties].

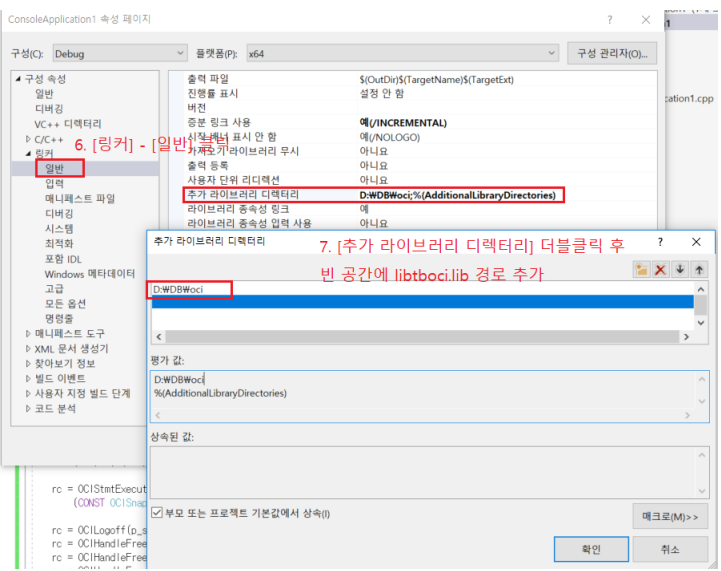

2) Set additional library directories on the [Linker] - [General] tab.


3) Add the Tibero OCI library as a dependency on the [Linker] - [Input] tab.



Working with Tibero Using OCI

1. Add OCI Header

#include โ€œoci.hโ€



2. Initialize OCI Objects

static OCIEnv *p_env;
static OCIError *p_err;
static OCISvcCtx *p_svc;
static OCIStmt *p_sql;
static OCIDefine *p_dfn = (OCIDefine *)0;
static OCIBind *p_bnd = (OCIBind *)0;

int p_bvi;
char p_sli[20];
int rc;

OraText errbuf[100];
int errcode;



rc = OCIInitialize((ub4)OCI_DEFAULT, (dvoid )0, / Initialize OCI */
   (dvoid * (*)(dvoid *, size_t)) 0,
   (dvoid * (*)(dvoid *, dvoid *, size_t))0,
   (void(*)(dvoid *, dvoid *)) 0);

/* Initialize environment */

rc = OCIEnvInit((OCIEnv **)&p_env, OCI_DEFAULT, (size_t)0, (dvoid **)0);

/* Initialize handles */

rc = OCIHandleAlloc((dvoid *)p_env, (dvoid **)&p_err, OCI_HTYPE_ERROR,
   (size_t)0, (dvoid **)0);
rc = OCIHandleAlloc((dvoid *)p_env, (dvoid **)&p_svc, OCI_HTYPE_SVCCTX,
   (size_t)0, (dvoid **)0);
SQL


3. Connect to Tibero Database

Enter the account and database information.
Note
Depending on the version, string data (char) can be compiled by casting to the Oracle-defined type (OraText).
/* Connect to database server */

rc = OCILogon(p_env, p_err, &p_svc, (OraText)โ€sysโ€, 3, (OraText)โ€tiberoโ€, 6,
(OraText*)โ€tiberoโ€, 6);

if (rc != 0) {
OCIErrorGet((dvoid *)p_err, (ub4)1, (text *)NULL, &errcode, errbuf, (ub4)
sizeof(errbuf), OCI_HTYPE_ERROR);

 printf("Error - %.*sn", 512, errbuf);
 exit(8);
}


4. Preprocess SQL (select)

/* Allocate and prepare SQL statement */

rc = OCIHandleAlloc((dvoid *)p_env, (dvoid **)&p_sql,

   OCI_HTYPE_STMT, (size_t)0, (dvoid **)0);
rc = OCIStmtPrepare(p_sql, p_err, (OraText*)โ€select * from dualโ€,

   (ub4)37, (ub4)OCI_NTV_SYNTAX, (ub4)OCI_DEFAULT);


5. Execute SQL (select) and Output Results

/* Execute the SQL statement */

rc = OCIStmtExecute(p_svc, p_sql, p_err, (ub4)1, (ub4)0,
   (CONST OCISnapshot *) NULL, (OCISnapshot *)NULL, OCI_DEFAULT);


while (rc != OCI_NO_DATA) { /* Fetch the remaining data */
     printf("%s", p_sli);
     rc = OCIStmtFetch(p_sql, p_err, 1, 0, 0);
}


6. Preprocess SQL (insert)

/* sql prepare */

rc = OCIStmtPrepare(p_sql, p_err, (OraText*)โ€insert into test values(โ€˜dummyโ€™, 100);โ€,
   (ub4)37, (ub4)OCI_NTV_SYNTAX, (ub4)OCI_DEFAULT);

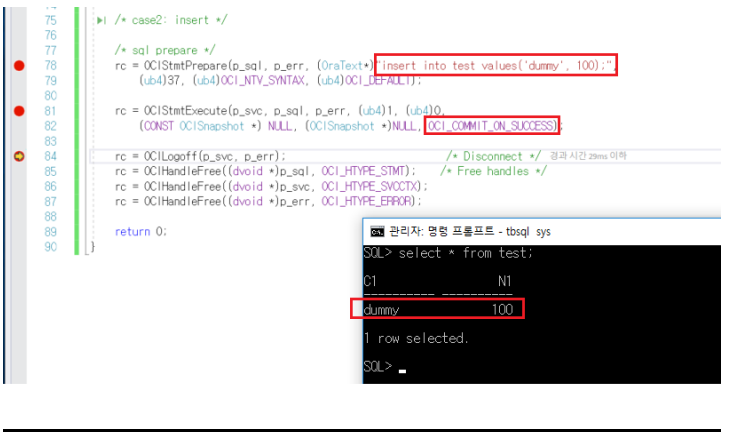

7. Execute SQL (insert) and Confirm Results

When set to OCI_COMMIT_ON_SUCCESS mode, the query will automatically commit if it is successfully applied.
rc = OCIStmtExecute(p_svc, p_sql, p_err, (ub4)1, (ub4)0,
  (CONST OCISnapshot *) NULL, (OCISnapshot *)NULL, OCI_COMMIT_ON_SUCCESS);

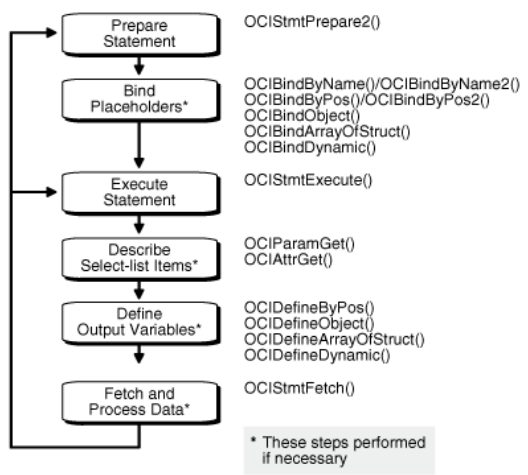

Reference) OCI SQL Processing Flow

3.2 OCI programming guide
https://docs.oracle.com/en/database/oracle/oracle-database/12.2/lnoci/ociprogramming-basics.html#GUID-8C59F2D9-3A69-41EE-927B-13659F6AD411
