TAS-TAC 설정 가이드

문서유형ㅣ기술정보

분야ㅣ설치

적용제품버전ㅣTibero 7.2.2

문서번호ㅣTINTI041



개요

본 가이드는 Tibero Cluster Manager를 사용하여 TAS상에 TAC구성을 하는 방법에 대해 설명합니다.

VirtualBox를 활용하여 Virtual Machine 2대를 사용하고 공유 디스크를 구성합니다.

테스트 시 사용한 OS는 Rocky Linux 8.10입니다.



방법

1. 설치 전 준비 사항

1.1. 바이너리 업로드 및 압축 해제

본 테스트에서는 Tibero 7.2.2(tibero7-bin-FS02_PS02-linux64_4.18-285045-20250107070637.tar.gz)를 사용합니다.
Virtual Machine 2대에 업로드 후 tar 명령어를 통해 압축을 해제합니다.

$ tar -xvzf tibero7-bin-FS02_PS02-linux64_4.18-285045-20250107070637.tar.gz



1.2. 라이선스 설정

$ mv license.xml $TB_HOME/license/



1.3. OS 커널 파라미터 설정

$ vi /etc/sysctl.conf

# MEMORY 9G 기준
kernel.sem = 10000 32000 10000 10000
kernel.shmmax = 5092931584
kernel.shmall = 1243391
kernel.shmmni = 4096
fs.file-max = 6815744
net.ipv4.ip_local_port_range = 1024 65500
net.core.rmem_max = 4194304
net.core.wmem_max = 1048576

$ sysctl -p
$ ulimit -n 65536


$ vi /etc/security/limits.conf
tibero soft nproc 16384
tibero hard nproc 16384
tibero soft nofile 65536
tibero hard nofile 65536
tibero soft core 0
tibero hard core 0

$ vi /etc/systemd/logind.conf
# RemoveIPC = no

$ systemctl restart systemd-logind



2. 설치

2.1. 설정 내역

아래와 같은 정보로 TAS-TAC를 구성합니다.

항목NODE 1NODE 2
OSHostnamerockyrocky
Usertiberotibero
TASSIDtas1tas2
DB NAMEtas
Listener PORT1862918629
Inter-connect PORT1962919629
TACSIDDBPIW1DBPIW2
DB NAMEDBPIW
Listener PORT86298629
Inter-connect PORT1101911019
CMSIDcm0cm1
Listener PORT1102911029
CM_UI_PORT1103911039
TAS/TACLOCAL_CLUSTER_ADDR10.10.10.110.10.10.2

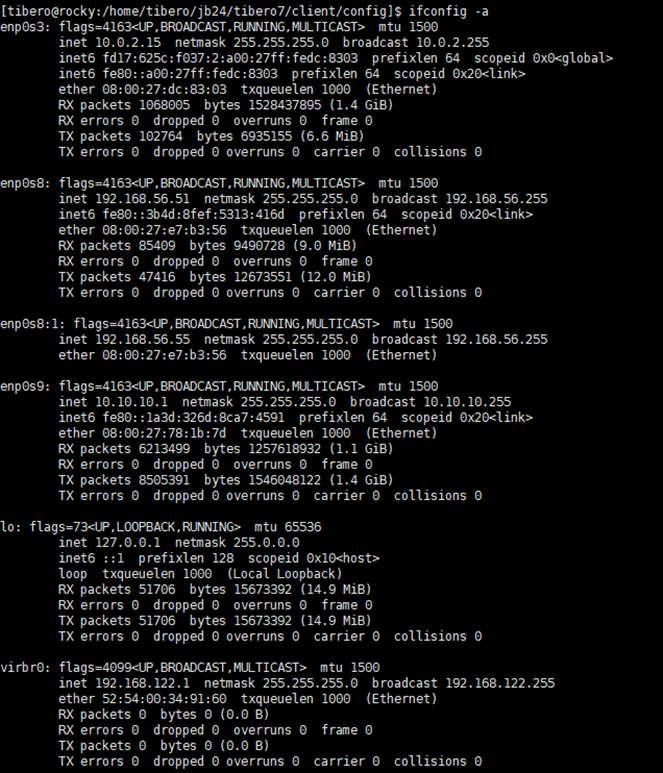

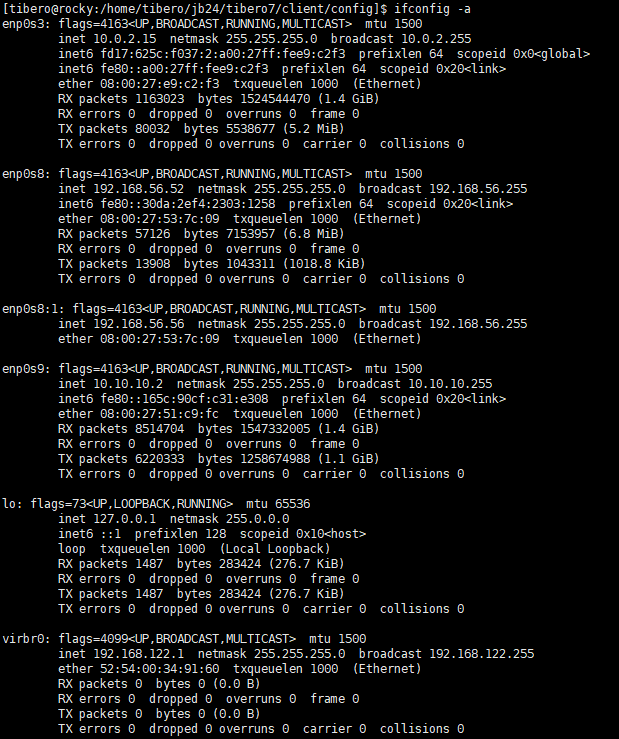

2.2. 네트워크 설정

interconnect: 10.10.10.1 / 10.10.10.2

RIP: 192.168.56.51 / 192.168.56.52

VIP: 192.168.56.55 / 192.168.56.56

NODE 1 NODE 2






2.3. 환경변수 설정

$ vi .bash_profile

NODE 1 NODE 2

# .bash_profile

# Get the aliases and functions
if [ -f ~/.bashrc ]; then
    . ~/.bashrc
fi

# User specific environment and startup programs

PATH=$PATH:$HOME/.local/bin:$HOME/bin
export PS1="[`whoami`@`hostname`:\$PWD]$"
export PATH

# Java ENV
export JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.462.b08-3.el9.x86_64
export PATH=$JAVA_HOME/bin:$PATH
export CLASSPATH=$CLASSPATH:$JAVA_HOME/jre/lib/ext:$JAVA_HOME/lib/tools.jar

### Tibero 7 ENV ###
export TB_BASE=/home/tibero/jb24
export TB_HOME=$TB_BASE/tibero7
export TB_SID=DBPIW1
export PATH=$TB_HOME/bin:$TB_HOME/client/bin:$JAVA_HOME:$TB_BASE/tbinary/monitor:$PATH
export LD_LIBRARY_PATH=$TB_HOME/lib:$TB_HOME/client/lib:$LD_LIBRARY_PATH

######## TIBERO alias ########
alias tbhome='cd $TB_HOME'
alias tblog='cd $TB_HOME/instance/$TB_SID/log'
alias tbcfg='cd $TB_HOME/config'
alias tbcfgv='vi $TB_HOME/config/$TB_SID.tip'
alias tbcli='cd $TB_HOME/client/config'
alias tbprocess='ps -ef | grep tbsvr'
alias tbcliv='vi $TB_HOME/client/config/tbdsn.tbr'
export TBINARY_PATH=$TB_BASE/tbinary
alias tbi='cd $TBINARY_PATH'
alias tm='cd $TBINARY_PATH/monitor;monitor;cd -'

### TEST ENV ###
export TB_SQLPATH=$TB_HOME
### User ENV ###
#export LANG=ko_KR.eucKR
#export LANG=C
set -o vi
stty erase ^H
stty erase ^?
#export EDITOR=vi
#export TERM=vt100
export PS1="[`whoami`@`hostname`:\$PWD]$"

### TIBERO CLUSTERE MANAGER ###
export CM_HOME=$TB_HOME
export CM_SID=cm0

### Alias For tbcm ###
alias cmcfgv='vi $CM_HOME/config/$CM_SID.tip'
alias cmlog='cd $CM_HOME/instance/$CM_SID/log'
alias show='cmrctl show'

tac(){
export TB_SID=DBPIW1
}

tas(){
export TB_SID=tas1
}


# .bash_profile

# Get the aliases and functions
if [ -f ~/.bashrc ]; then
    . ~/.bashrc
fi

# User specific environment and startup programs

# Java ENV
export JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.462.b08-3.el9.x86_64
export PATH=$JAVA_HOME/bin:$PATH
export CLASSPATH=$CLASSPATH:$JAVA_HOME/jre/lib/ext:$JAVA_HOME/lib/tools.jar

### Tibero 7 ENV ###
export TB_BASE=/home/tibero/jb24
export TB_HOME=$TB_BASE/tibero7
export TB_SID=DBPIW2
export PATH=$TB_HOME/bin:$TB_HOME/client/bin:$JAVA_HOME:$TB_BASE/tbinary/monitor:$PATH
export LD_LIBRARY_PATH=$TB_HOME/lib:$TB_HOME/client/lib:$LD_LIBRARY_PATH

######## TIBERO alias ########
alias tbhome='cd $TB_HOME'
alias tblog='cd $TB_HOME/instance/$TB_SID/log'
alias tbcfg='cd $TB_HOME/config'
alias tbcfgv='vi $TB_HOME/config/$TB_SID.tip'
alias tbcli='cd $TB_HOME/client/config'
alias tbprocess='ps -ef | grep tbsvr'
alias tbcliv='vi $TB_HOME/client/config/tbdsn.tbr'
export TBINARY_PATH=$TB_BASE/tbinary
alias tbi='cd $TBINARY_PATH'
alias tm='cd $TBINARY_PATH/monitor;monitor;cd -'

### TEST ENV ###
export TB_SQLPATH=$TB_HOME
### User ENV ###
#export LANG=ko_KR.eucKR
#export LANG=C
set -o vi
stty erase ^H
stty erase ^?
#export EDITOR=vi
#export TERM=vt100
export PS1="[`whoami`@`hostname`:\$PWD]$"

### TIBERO CLUSTERE MANAGER ###
export CM_HOME=$TB_HOME
export CM_SID=cm1

### Alias For tbcm ###
alias cmcfgv='vi $CM_HOME/config/$CM_SID.tip'
alias cmlog='cd $CM_HOME/instance/$CM_SID/log'
alias show='cmrctl show'



tac(){
export TB_SID=DBPIW2
}

tas(){
export TB_SID=tas2
}




2.4. TAS tip파일 생성 및 수정

TAS SID 적용을 위해  tas를 수행합니다. (.bash_profile에 alias로 적용)

NODE 1(tas1.tip)NODE 2(tas2.tip)

### DATABASE ###
DB_NAME=tas
LISTENER_PORT=18629


### MEMORY ###
MAX_SESSION_COUNT=30
TOTAL_SHM_SIZE=1G
MEMORY_TARGET=2G


CLUSTER_DATABASE=Y
THREAD=0
LOCAL_CLUSTER_ADDR=10.10.10.1
LOCAL_CLUSTER_PORT=19629
CM_PORT=11039


INSTANCE_TYPE=AS
AS_DISKSTRING="/dev/tas/*"
AS_ALLOW_ONLY_RAW_DISKS=N
AS_WTHR_CNT=2



### DATABASE ###
DB_NAME=tas
LISTENER_PORT=18629


### MEMORY ###
MAX_SESSION_COUNT=30
TOTAL_SHM_SIZE=1G
MEMORY_TARGET=2G


CLUSTER_DATABASE=Y
THREAD=1
LOCAL_CLUSTER_ADDR=10.10.10.2
LOCAL_CLUSTER_PORT=19629
CM_PORT=11039


INSTANCE_TYPE=AS
AS_DISKSTRING="/dev/tas/*"
AS_ALLOW_ONLY_RAW_DISKS=N
AS_WTHR_CNT=2




2.5. TAC tip파일 생성 및 수정

TAC SID 적용을 위해 tac를 수행합니다. (.bash_profile에 alias로 적용)

NODE 1(DBPIW1.tip)NODE 2(DBPIW2.tip)

# tip file generated from /home/tibero/jb/tibero7/config/tip.template (Mon Sep  1 16:54:32 KST 2025)
#-------------------------------------------------------------------------------
#
# RDBMS initialization parameter
#
#-------------------------------------------------------------------------------

DB_NAME=DBPIW
LISTENER_PORT=8629
CONTROL_FILES="+DS_DATA/control/c1.ctl"

DB_CREATE_FILE_DEST="+DS_DATA/DBPIWDBF"
LOG_ARCHIVE_DEST="/home/tibero/jb24/tbarch"

MAX_SESSION_COUNT=20

TOTAL_SHM_SIZE=2G
MEMORY_TARGET=3G

##TAC
THREAD=0
UNDO_TABLESPACE=UNDO0
CLUSTER_DATABASE=Y

# TAS
USE_ACTIVE_STORAGE=Y
AS_PORT=18629

##CM
LOCAL_CLUSTER_ADDR=10.10.10.1
LOCAL_CLUSTER_PORT=11029
CM_PORT=11039

USE_TS_QUOTA=N
SLOG_DISPLAY_YEAR=Y
AUTHENTICATION_TIMEOUT=100
DBLINK_CONN_TIMEOUT=100
GATHER_SQL_EXEC_TIME=Y
GATHER_SQL_PLAN_STAT=Y
DBWR_USE_AIO=N
_MISC_SHP_ALLOC_MAX_RATIO=80

_ENABLE_LOG_MINER=Y
_DDL_TRIGGER_ENABLE=Y
_SPAN_UNDO=N


# tip file generated from /home/tibero/jb/tibero7/config/tip.template (Mon Sep  1 18:11:00 KST 2025)
#-------------------------------------------------------------------------------
#
# RDBMS initialization parameter
#
#-------------------------------------------------------------------------------

DB_NAME=DBPIW
LISTENER_PORT=8629
CONTROL_FILES="+DS_DATA/control/c1.ctl"

DB_CREATE_FILE_DEST="+DS_DATA/DBPIWDBF"
LOG_ARCHIVE_DEST="/home/tibero/jb24/tbarch"

MAX_SESSION_COUNT=20

TOTAL_SHM_SIZE=2G
MEMORY_TARGET=3G

##TAC
THREAD=1
UNDO_TABLESPACE=UNDO1
CLUSTER_DATABASE=Y

# TAS
USE_ACTIVE_STORAGE=Y
AS_PORT=18629

##CM
LOCAL_CLUSTER_ADDR=10.10.10.2
LOCAL_CLUSTER_PORT=11029
CM_PORT=11039

USE_TS_QUOTA=N
SLOG_DISPLAY_YEAR=Y
AUTHENTICATION_TIMEOUT=100
DBLINK_CONN_TIMEOUT=100
GATHER_SQL_EXEC_TIME=Y
GATHER_SQL_PLAN_STAT=Y
DBWR_USE_AIO=N
_MISC_SHP_ALLOC_MAX_RATIO=80

_ENABLE_LOG_MINER=Y
_DDL_TRIGGER_ENABLE=Y
_SPAN_UNDO=N




2.6. CM tip파일 생성

NODE 1(cm0.tip)NODE 2(cm1.tip)

CM_UI_PORT=11039
CM_NAME=cm0
CM_RESOURCE_FILE=/home/tibero/jb24/tibero7/config/cm0_res.crf
CM_ENABLE_FAST_NET_ERROR_DETECTION=Y

CM_HEARTBEAT_EXPIRE=90
CM_WATCHDOG_EXPIRE=80


CM_UI_PORT=11039
CM_NAME=cm1
CM_RESOURCE_FILE=/home/tibero/jb24/tibero7/config/cm1_res.crf
CM_ENABLE_FAST_NET_ERROR_DETECTION=Y

CM_HEARTBEAT_EXPIRE=90
CM_WATCHDOG_EXPIRE=80





2.7. tbdsn.tbr 수정

NODE 1NODE 2

DBPIW1=(
   (INSTANCE=(HOST=localhost)
             (PORT=8629)
             (DB_NAME=DBPIW)
   )
)

tas1=(
(INSTANCE=(HOST=localhost)
(PORT=18629)
(DB_NAME=tas)
)
)

DBPIW=(
   (INSTANCE=(HOST=localhost)
        (PORT=8629)
           (DB_NAME=DBPIW)
)
   (INSTANCE=(HOST=192.168.56.52)
        (PORT=8629)
           (DB_NAME=DBPIW)
)
     (LOAD_BALANCE=Y)
     (USE_FAILOVER=Y)
)


DBPIW2=(
   (INSTANCE=(HOST=localhost)
             (PORT=8629)
             (DB_NAME=DBPIW)
   )
)

tas2=(
(INSTANCE=(HOST=localhost)
(PORT=18629)
(DB_NAME=tas)
)
)

DBPIW=(
   (INSTANCE=(HOST=localhost)
        (PORT=8629)
           (DB_NAME=DBPIW)
)
   (INSTANCE=(HOST=192.168.56.51)
        (PORT=8629)
           (DB_NAME=DBPIW)
)
     (LOAD_BALANCE=Y)
     (USE_FAILOVER=Y)
)

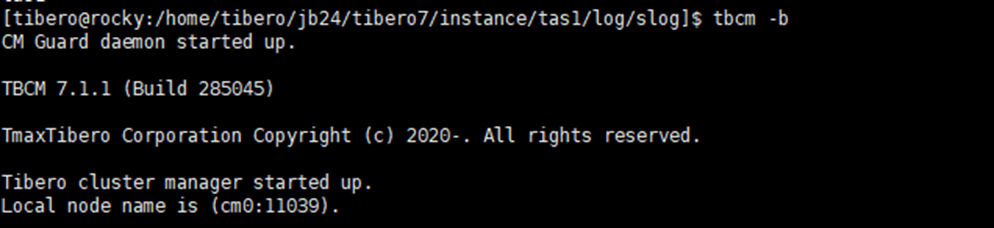

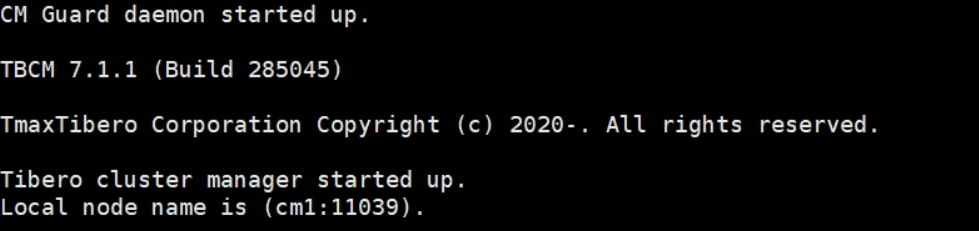

2.8. tbcm 기동

NODE1에서 수행

$ tbcm -b

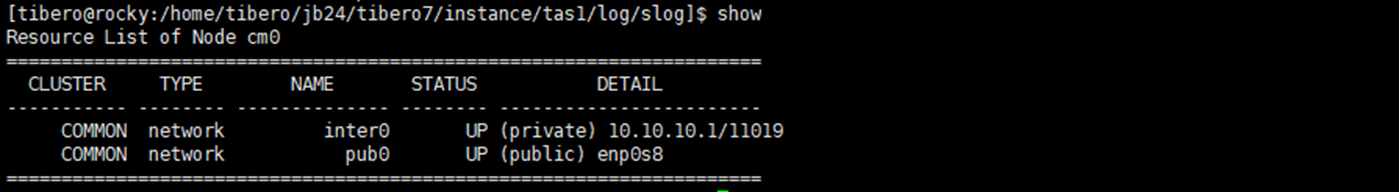

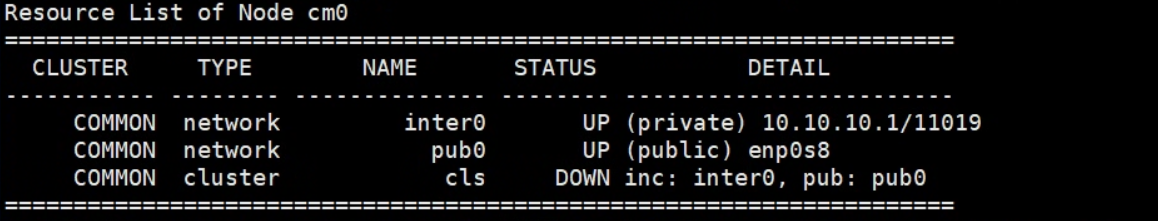

2.9. CM에 network 등록

NODE1에서 수행

$ cmrctl add network --name inter0 --nettype private --ipaddr 10.10.10.1 --portno 11019
$ cmrctl add network --name pub0 --nettype public --ifname enp0s8


$ show

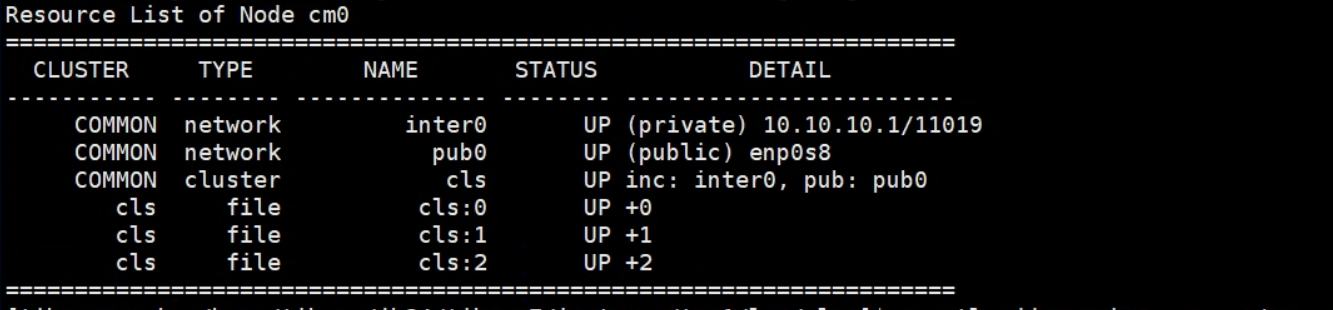

2.10. CM에 cluster 등록

NODE1에서 수행

$ cmrctl add cluster --name cls --incnet inter0 --pubnet pub0 --cfile "+/dev/tas/*"
$ cmrctl start cluster --name cls

$ show



2.11. TAS Instance 기동

NODE1에서 수행

$ echo $TB_SID -> tas1 확인

$ tbboot nomount



2.12. Diskspace 생성

NODE1에서 수행

$ tbsql sys/tibero@tas1

SQL> CREATE DISKSPACE DS_DATA force
EXTERNAL REDUNDANCY
FAILGROUP DFG1
DISK '/dev/tas/disk01' NAME disk1 SIZE 20G
attribute 'AU_SIZE'='4M';



2.13. Cluster 기동

NODE1에서 수행

$ cmrctl start cluster --name cls

$ cmrctl show

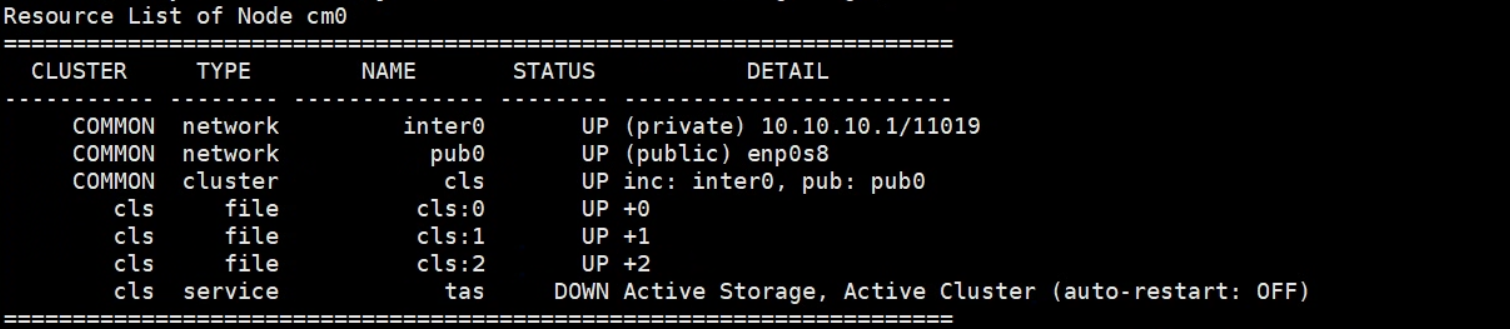

2.14. CM에 TAS Service 등록

NODE1에서 수행

$ cmrctl add service --name tas --cname cls --type as

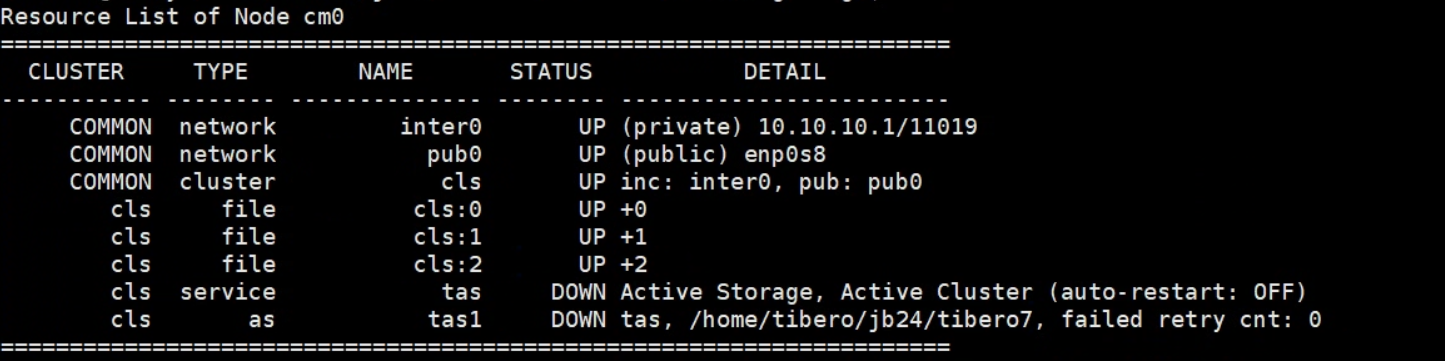

2.15. CM에 TAS Instance 등록

NODE1에서 수행

$ cmrctl add as --name tas1 --svcname tas --dbhome $TB_HOME

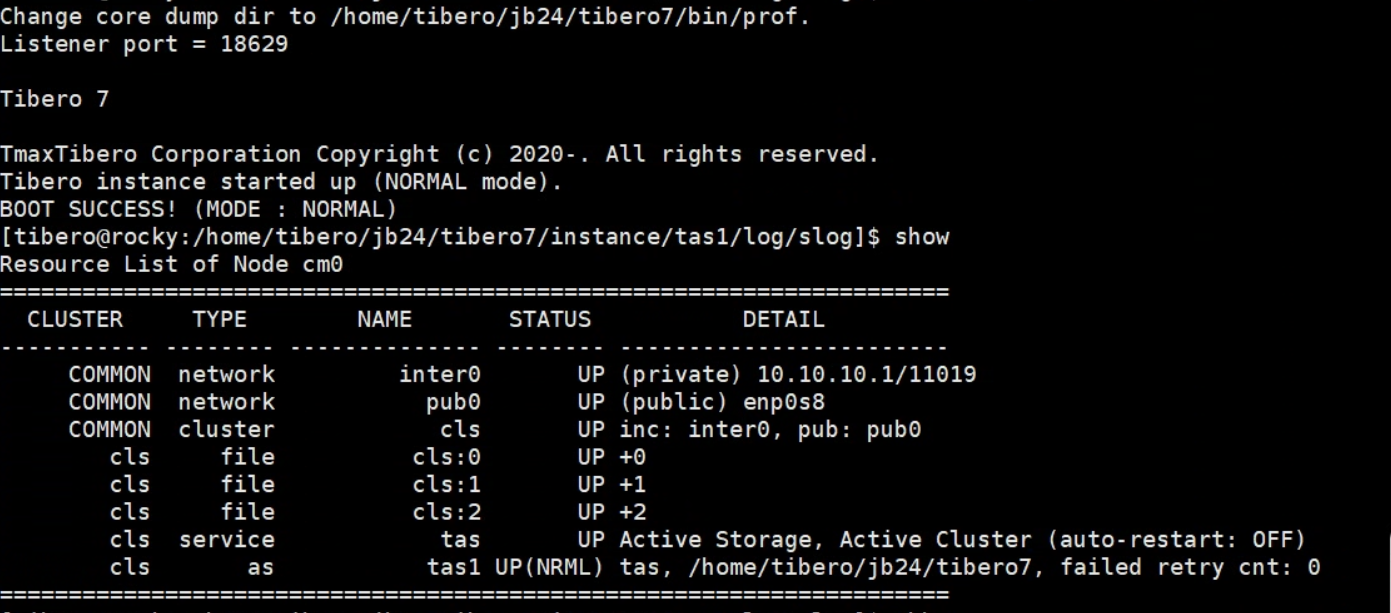

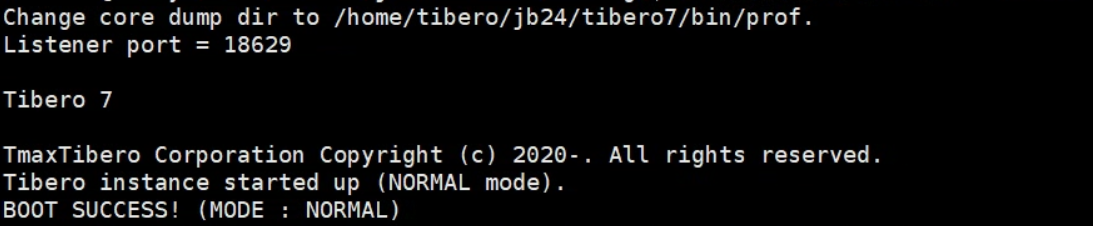

2.16. TAS Instance 기동

NODE1에서 수행

$ cmrctl start as --name tas1



2.17. NODE2 TAS Instance를 위한 Thread 추가

NODE1에서 수행

$ tbsql sys/tibero@tas1

SQL> alter diskspace DS_DATA add thread 1;



2.18. CM에 TAC Service 및 DB instance 등록

NODE1에서 수행

$ cmrctl add service --name DBPIW --cname cls --type db

$ cmrctl add db --name DBPIW1 --svcname DBPIW --dbhome $TB_HOME

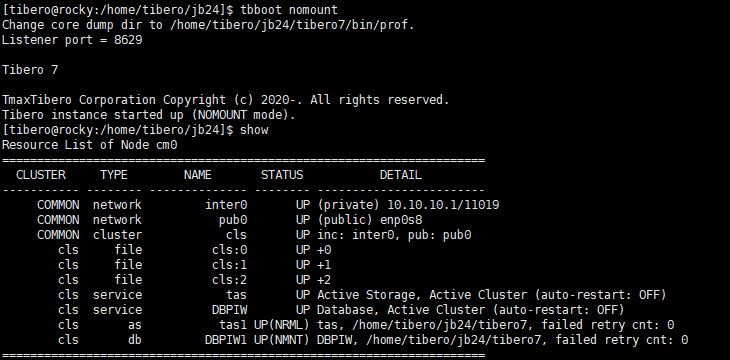

2.19. TAC 기동

NODE1에서 수행

$ tbboot nomount



2.20. Database 생성

NODE1에서 수행

$ tbsql sys/tibero@tac



SQL> create database
user sys identified by tibero
character set UTF8  -- UTF8, EUCKR, ASCII, MSWIN949
logfile group 0 ('+DS_REDO/redo1/redo00A.redo','+DS_REDO/redo2/redo00B.redo') size 100M,
       group 1 ('+DS_REDO/redo1/redo01A.redo','+DS_REDO/redo2/redo01B.redo') size 100M,
       group 2 ('+DS_REDO/redo1/redo02A.redo','+DS_REDO/redo2/redo02B.redo') size 100M
maxdatafiles 4096
maxlogfiles 100
maxlogmembers 8
archivelog
 datafile '+DS_DATA/DBPIWDBF/system001.dtf' size 1G autoextend off --system
default tablespace USR
 datafile '+DS_DATA/DBPIWDBF/usr001.dtf' size 1G autoextend off --usr
default temporary tablespace TEMP
 tempfile '+DS_DATA/DBPIWDBF/temp001.dtf' size 1G autoextend off -- temp
undo tablespace UNDO0
 datafile '+DS_DATA/DBPIWDBF/undo001.dtf' size 1G autoextend off --undo
syssub datafile '+DS_DATA/DBPIWDBF/tpr_ts.dtf' size 1G autoextend off; --syssub

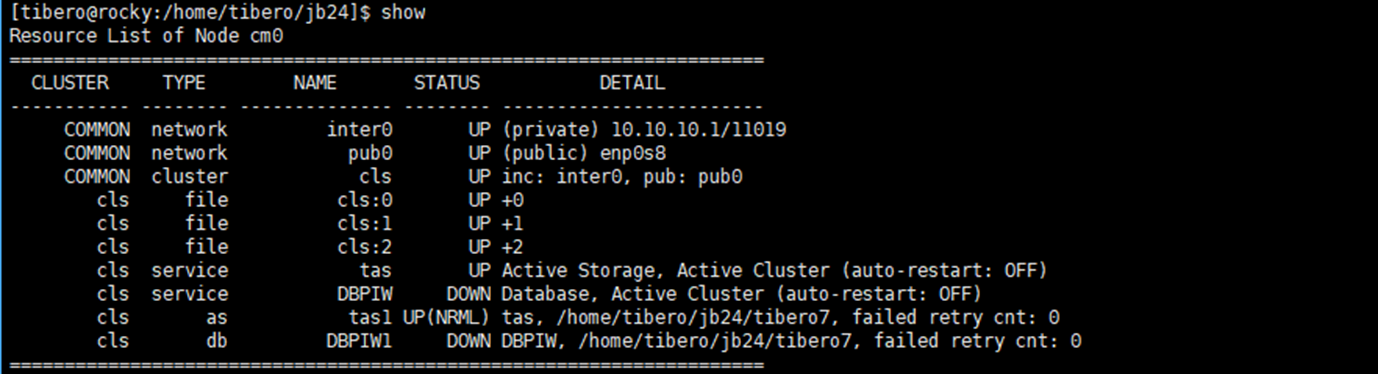

2.21. NODE2 TAC Instance를 위한 Thread의 undo, redo 추가

NODE1에서 수행

$ cmrctl show

$ tbsql sys/tibero@tac

SQL> create undo tablespace UNDO1 datafile '+DS_DATA/DBPIWDBF/undo002.dtf' size 1G autoextend off;


SQL> alter database add logfile thread 1 group 3 ('+DS_REDO/redo1/redo03A.redo','+DS_REDO/redo2/redo03B.redo') size 100M;
SQL> alter database add logfile thread 1 group 4 ('+DS_REDO/redo1/redo04A.redo','+DS_REDO/redo2/redo04B.redo') size 100M;
SQL> alter database add logfile thread 1 group 5 ('+DS_REDO/redo1/redo05A.redo','+DS_REDO/redo2/redo05B.redo') size 100M;

SQL> alter database enable public thread 1;



2.22. system.sh 실행

NODE1에서 수행

$ sh $TB_HOME/scripts/system.sh -p1 tibero -p2 syscat -a1 y -a2 y -a3 y -a4 y



2.23. tbcm 기동

NODE2에서 수행

$ tbcm -b



2.24. CM에 network 등록

NODE2에서 수행

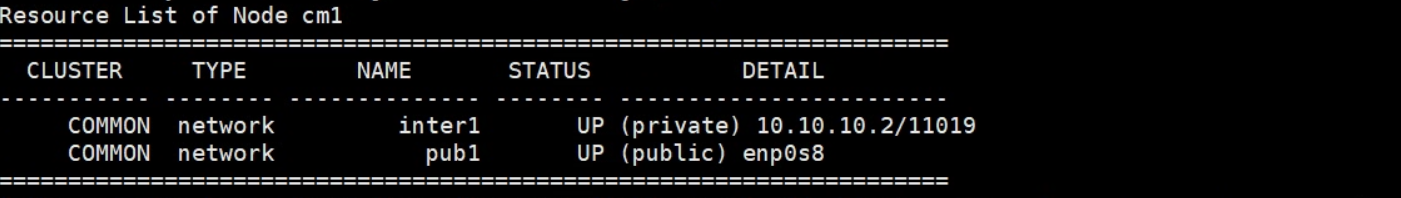

$ cmrctl add network --name inter1 --nettype private --ipaddr 10.10.10.2 --portno 11019
$ cmrctl add network --name pub1 --nettype public --ifname enp0s8



$ show




2.25. CM에 cluster 등록

NODE2에서 수행

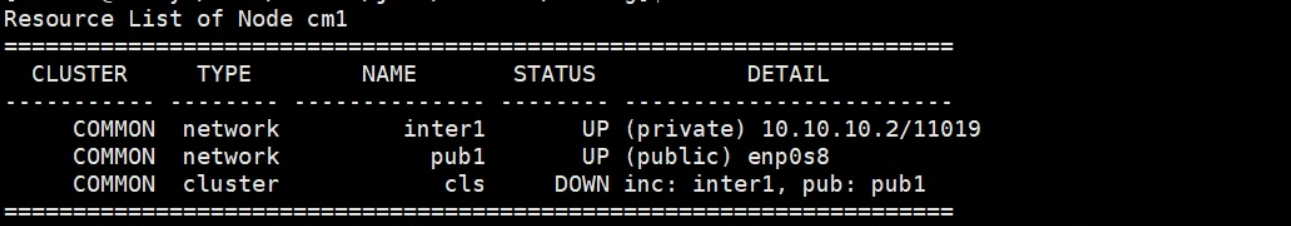

$ cmrctl add cluster --name cls --incnet inter1 --pubnet pub1 --cfile "+/dev/tas/*"

$ show



2.26. Cluster 기동

NODE2에서 수행

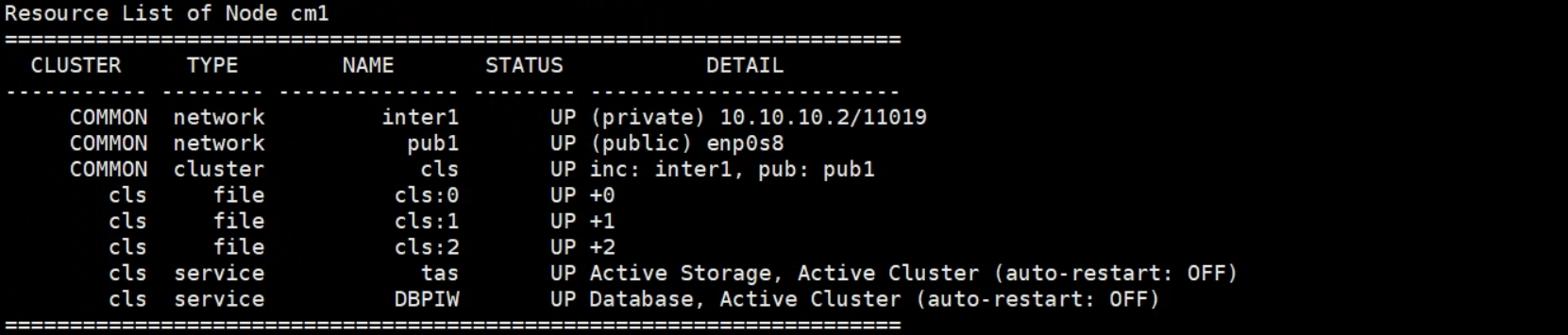

$ cmrctl start cluster --name cls

$ show



2.27. CM에 TAS Instance 등록

NODE2에서 수행

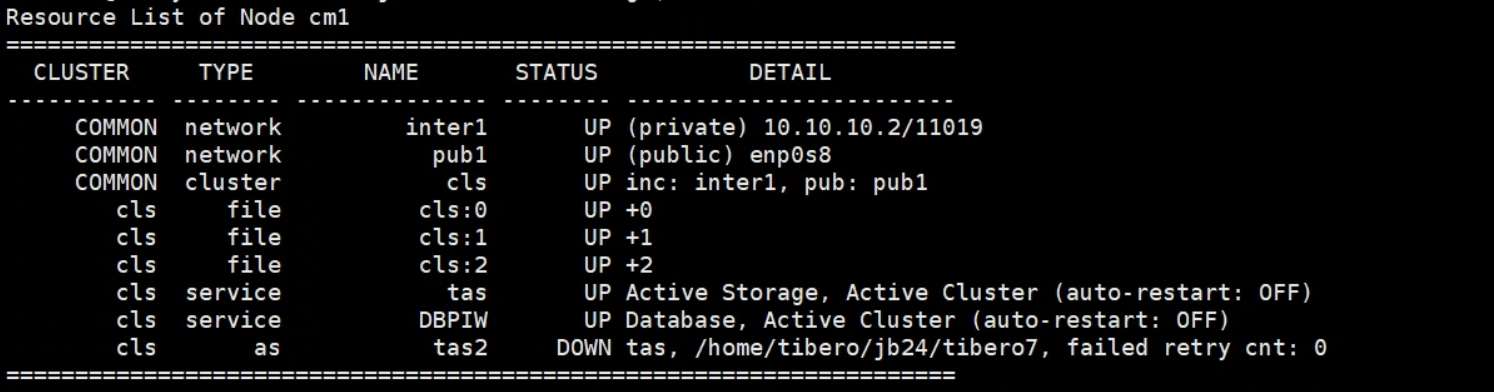

$ cmrctl add as --name tas2 --svcname tas --dbhome $TB_HOME

$ show



2.28. TAS Instance 기동

NODE2에서 수행

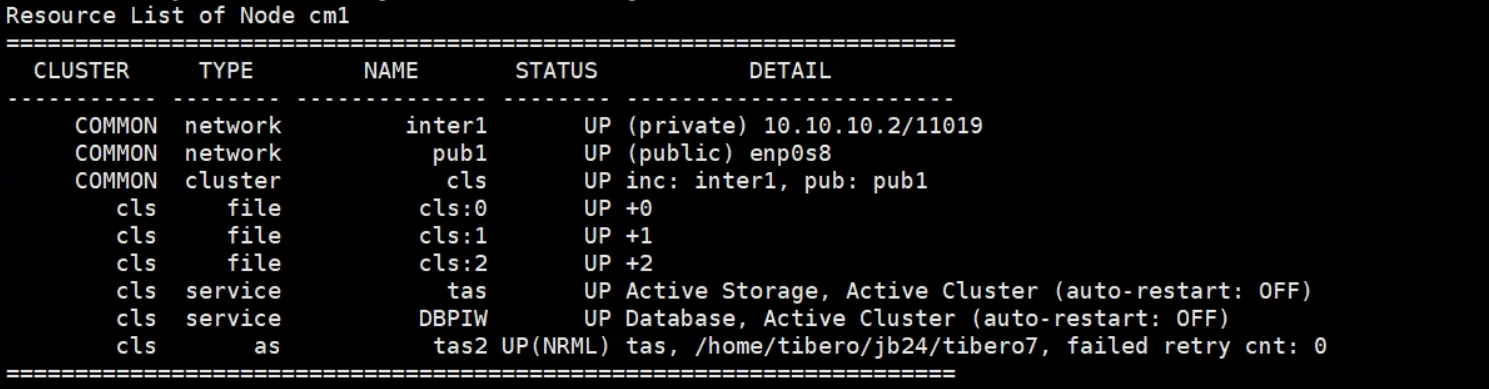

$ cmrctl start as --name tas2

$ show



2.29. CM에 TAC Instance 등록

NODE2에서 수행

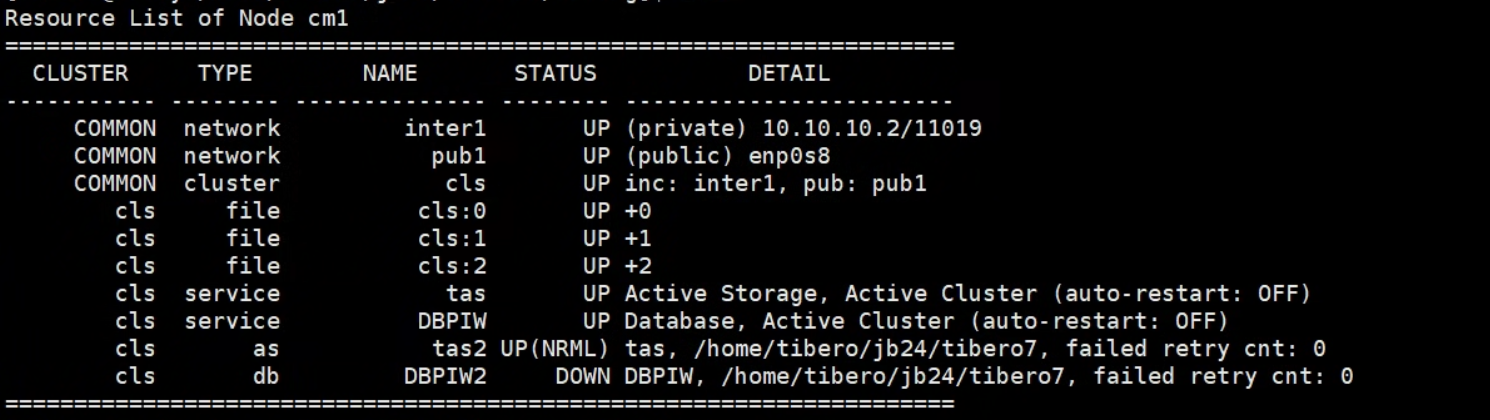

$ cmrctl add db --name DBPIW2 --svcname DBPIW --dbhome $TB_HOME

$ show



2.30. TAC 2번 기동

NODE2에서 수행

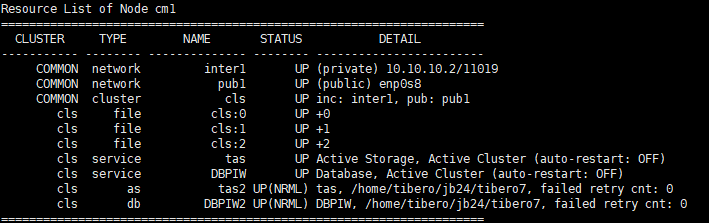

$ tbboot



2.31. VIP 등록

os root 계정으로 기동 후 tibero계정 .bash_profile 적용

$ tbcm -b

$ cmrctl add vip --name vip1 --node cm0 --svcname DBPIW --ipaddr 192.168.56.55

$ cmrctl add vip --name vip2 --node cm1 --svcname DBPIW --ipaddr 192.168.56.56

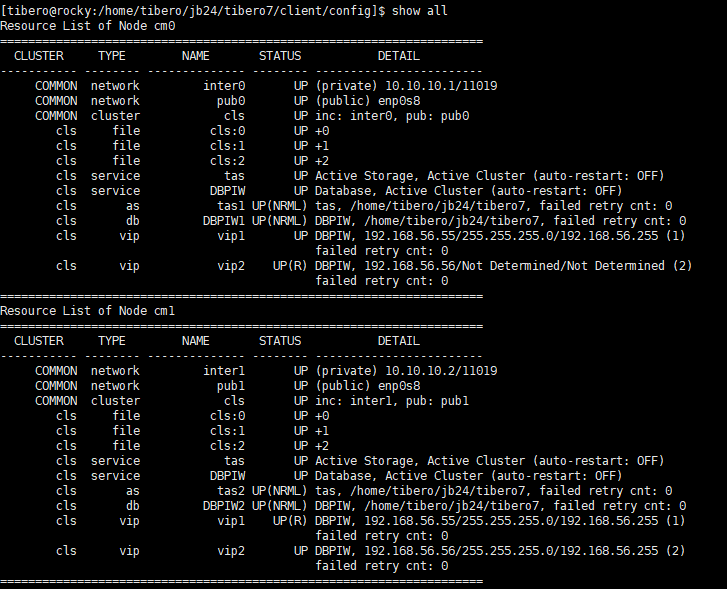

정상화면
