Prosync TAC to TAC 단방향 동기화 CM failover 설정-4

문서유형ㅣ기술정보

분야ㅣ설치

적용제품버전ㅣTibero 7FS04PS

문서번호ㅣPINTI010



개요

Source DB(TAC)에서 Target DB(TAC)로 단방향 동기화 구성에서 CM Failover 설정 방법에 대해 기술하였습니다.
본 문서는 "4편 CM Failover 테스트"에 대해 기술하였습니다.
  • 1편 : Prosync 설치 준비 및 Agent 설치
  • 2편 : Instanct 설치
  • 3편 : CM Failover 설정
  • 4편 : CM Failover 테스트

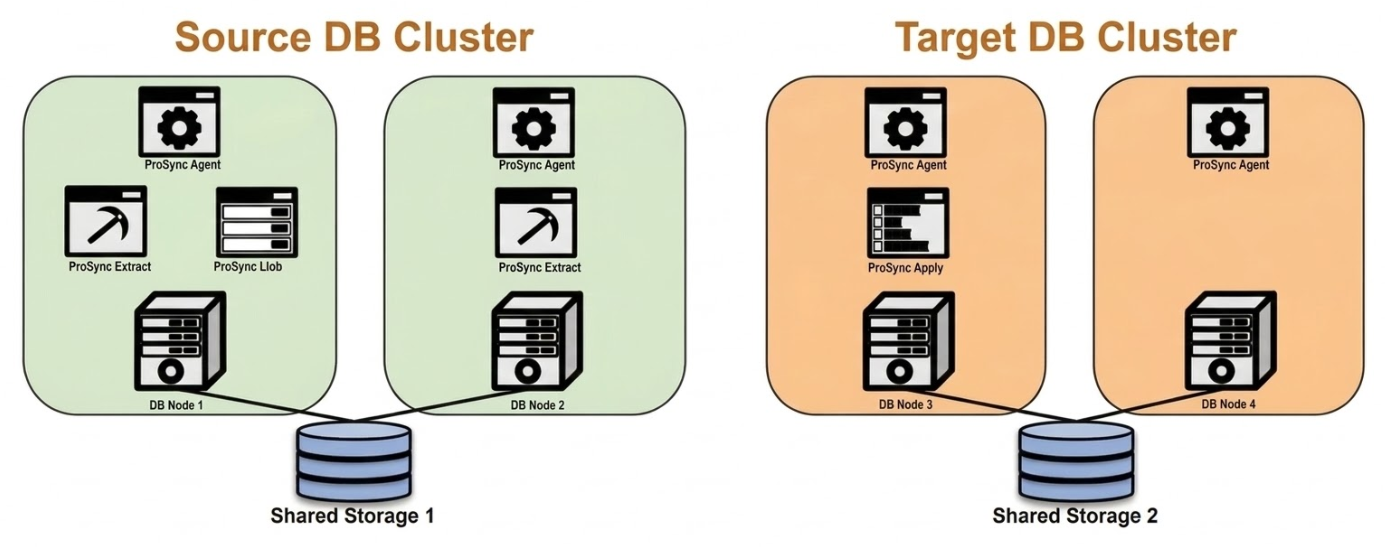

테스트 환경

구분OSIPDBMS VersionProsync Version
Source_TAC0Rocky Linux release 8.10 10.10.10.61Tibero 7.2.4 (build 305455)4.6.0 (build 308985)
Source_TAC1Rocky Linux release 8.10 10.10.10.62Tibero 7.2.4 (build 305455)4.6.0 (build 308985)
Target_TAC0Rocky Linux release 8.10 10.10.10.63Tibero 7.2.4 (build 305455)4.6.0 (build 308985)
Target_TAC1Rocky Linux release 8.10 10.10.10.64Tibero 7.2.4 (build 305455)4.6.0 (build 308985)

참고

Prosync CM Failover 기능은 Prosync 4.3 이상 버전부터 지원됩니다.





방법

CM Failover 테스트

1. Source_TAC0 DOWN

Source TAC에서 0번 노드에 대한 db & cm down 상황에서 CM Failover 동작을 확인합니다.

1-1. Source_TAC prosync 프로세스 상태 확인

-- source node#0 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      965072       1  0 07:45 ?        00:00:00 prs_agent src_agent1
tibero      965151  965072  0 07:45 ?        00:00:00 prs_ext PRS_FAILOVER 1 src_agent1
tibero      965165  965072  0 07:45 ?        00:00:00 prs_llob PRS_FAILOVER 1 src_agent1
tibero      970098  846411  0 07:50 pts/2    00:00:00 grep --color=auto prs

-- source node#1 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      954562       1  0 07:45 ?        00:00:00 prs_agent src_agent2
tibero      954621  954562  0 07:45 ?        00:00:00 prs_ext PRS_FAILOVER 2 src_agent2
tibero      959694  471337  0 07:51 pts/0    00:00:00 grep --color=auto prs



1-2. Source_TAC0 DB & CM DOWN

-- source node#0 db down
$ tbdown immediate

Tibero instance terminated (IMMEDIATE mode).

-- source node#0 cm down
$ tbcm -d
CM DOWN SUCCESS!



1-3. Source_TAC prosync 프로세스 상태 확인

-- source node#0 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      970966  846411  0 07:51 pts/2    00:00:00 grep --color=auto prs

-- source node#1 prosync 프로세스 확인
$  ps -ef | grep prs
tibero      954562       1  0 07:45 ?        00:00:00 prs_agent src_agent2
tibero      954621  954562  0 07:45 ?        00:00:00 prs_ext PRS_FAILOVER 2 src_agent2
tibero      960366  954562 11 07:51 ?        00:00:02 prs_ext PRS_FAILOVER 1 src_agent2
tibero      960370  954562  0 07:51 ?        00:00:00 prs_llob PRS_FAILOVER 1 src_agent2
tibero      960746  471337  0 07:52 pts/0    00:00:00 grep --color=auto prs



1-4. prs_adm 상태 확인

$ prs_adm

ProSync 4 - Admin Utility

TmaxData Corporation Copyright (c) 2024-. All rights reserved.

Admin> status

prs_agent ID: src_agent1, HOST: 10.10.10.61, PORT: 7600, CM_GROUP: SRC_CM, CM_ID: 0 is stopped
prs_agent ID: src_agent2, HOST: 10.10.10.62, PORT: 7700, CM_GROUP: SRC_CM, CM_ID: 1 is running
prs_agent ID: tar_agent1, HOST: 10.10.10.63, PORT: 7800, CM_GROUP: TAR_CM, CM_ID: 0 is running
prs_agent ID: tar_agent2, HOST: 10.10.10.64, PORT: 7900, CM_GROUP: TAR_CM, CM_ID: 1 is running


Instance ID: [PRS_FAILOVER]
PRS_FAILOVER_ext1 (1) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)
PRS_FAILOVER_ext2 (2) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)
PRS_FAILOVER_apply1 (1) is running (prs_agent ID : tar_agent1, HOST: 10.10.10.63, PORT: 7800)
PRS_FAILOVER_llob (1) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)

참고

cm failover가 되고나면 ext1가 상대 노드 2번 서버에서 기동되는데, ext log를 보면 아래와 같이 *.tlr 파일을 찾으며 동기화가 되지 않는 경우 발생합니다.

[03-09T00:26:39.209893] [REA-05] [I] txinfo found (/root/prosync4/var/PRS_FAILOVER/lr1/redo_data_13_0.tlr)
[03-09T00:26:39.210079] [REA-05] [I] tli opened (flag:0x04, logblk_size:512, logblk_cnt:8)
[03-09T00:26:39.210119] [REA-05] [E] tli_load_txinfo failed (rc:-3) [prs_ext_tread.c:1072]
  • 원인 : CM Failover 기능을 사용할 경우에는 Prosync 바이너리와 TAC redo, Archivelog file이 양 노드가 모두 접근 가능한 shared Filesystem에 위치햐야 함



2. Source_TAC1 DOWN

Source TAC에서 1번 노드에 대한 db & cm down 상황에서 CM Failover 동작을 확인합니다.

2-1. Source_TAC prosync 프로세스 상태 확인

-- source node#0 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      965072       1  0 07:45 ?        00:00:00 prs_agent src_agent1
tibero      965151  965072  0 07:45 ?        00:00:00 prs_ext PRS_FAILOVER 1 src_agent1
tibero      965165  965072  0 07:45 ?        00:00:00 prs_llob PRS_FAILOVER 1 src_agent1
tibero      970098  846411  0 07:50 pts/2    00:00:00 grep --color=auto prs

-- source node#1 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      954562       1  0 07:45 ?        00:00:00 prs_agent src_agent2
tibero      954621  954562  0 07:45 ?        00:00:00 prs_ext PRS_FAILOVER 2 src_agent2
tibero      959694  471337  0 07:51 pts/0    00:00:00 grep --color=auto prs



2-2. Source_TAC1 DB & CM DOWN

-- source node#1 db down
$ tbdown immediate

Tibero instance terminated (IMMEDIATE mode).

-- source node#1 cm down
$ tbcm -d
CM DOWN SUCCESS!



2-3. Source_TAC prosync 프로세스 상태 확인

-- source node#0 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      978366       1  0 08:27 ?        00:00:00 prs_agent src_agent1
tibero      978476  978366  0 08:27 ?        00:00:01 prs_ext PRS_FAILOVER 1 src_agent1
tibero      978484  978366  0 08:27 ?        00:00:00 prs_llob PRS_FAILOVER 1 src_agent1
tibero      990974  978366 13 08:39 ?        00:00:00 prs_ext PRS_FAILOVER 2 src_agent1
tibero      991056  846411  0 08:40 pts/2    00:00:00 grep --color=auto prs

-- source node#1 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      970966  846411  0 07:51 pts/2    00:00:00 grep --color=auto prs



2-4. prs_adm 상태 확인

$ prs_adm

ProSync 4 - Admin Utility

TmaxData Corporation Copyright (c) 2024-. All rights reserved.

Admin> status

prs_agent ID: src_agent1, HOST: 10.10.10.61, PORT: 7600, CM_GROUP: SRC_CM, CM_ID: 0 is running
prs_agent ID: src_agent2, HOST: 10.10.10.62, PORT: 7700, CM_GROUP: SRC_CM, CM_ID: 1 is stopped
prs_agent ID: tar_agent1, HOST: 10.10.10.63, PORT: 7800, CM_GROUP: TAR_CM, CM_ID: 0 is running
prs_agent ID: tar_agent2, HOST: 10.10.10.64, PORT: 7900, CM_GROUP: TAR_CM, CM_ID: 1 is running


Instance ID: [PRS_FAILOVER]
PRS_FAILOVER_ext1 (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
PRS_FAILOVER_ext2 (2) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
PRS_FAILOVER_apply1 (1) is running (prs_agent ID : tar_agent1, HOST: 10.10.10.63, PORT: 7800)
PRS_FAILOVER_llob (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)



3. Target_TAC0 DOWN

Target TAC에서 0번 노드에 대한 db & cm down 상황에서 CM Failover 동작을 확인합니다.

3-1. Target_TAC prosync 프로세스 상태 확인

-- target node#0 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      925564       1  1 08:33 ?        00:00:00 prs_agent tar_agent1
tibero      925642  925564  0 08:33 ?        00:00:00 prs_apply PRS_FAILOVER 1 tar_agent1
tibero      925866  479606  0 08:33 pts/1    00:00:00 grep --color=auto prs

-- target node#1 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      921553       1 15 08:34 ?        00:00:00 prs_agent tar_agent2
tibero      921629  764786  0 08:34 pts/2    00:00:00 grep --color=auto prs



3-2. Target_TAC0 DB & CM DOWN

-- target node#1 db down
$ tbdown immediate

Tibero instance terminated (IMMEDIATE mode).

-- target node#1 cm down
$ tbcm -d
CM DOWN SUCCESS!



3-3. Target_TAC prosync 프로세스 상태 확인

-- target node#0 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      924889  479606  0 08:31 pts/1    00:00:00 grep --color=auto prs

-- target node#1 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      900667       1  0 07:46 ?        00:00:00 prs_agent tar_agent2
tibero      919319  900667  0 08:28 ?        00:00:00 prs_apply PRS_FAILOVER 1 tar_agent2
tibero      920441  764786  0 08:31 pts/2    00:00:00 grep --color=auto prs



3-4. prs_adm 상태 확인

$ prs_adm

ProSync 4 - Admin Utility

TmaxData Corporation Copyright (c) 2024-. All rights reserved.

Admin> status

prs_agent ID: src_agent1, HOST: 10.10.10.61, PORT: 7600, CM_GROUP: SRC_CM, CM_ID: 0 is running
prs_agent ID: src_agent2, HOST: 10.10.10.62, PORT: 7700, CM_GROUP: SRC_CM, CM_ID: 1 is running
prs_agent ID: tar_agent1, HOST: 10.10.10.63, PORT: 7800, CM_GROUP: TAR_CM, CM_ID: 0 is stopped
prs_agent ID: tar_agent2, HOST: 10.10.10.64, PORT: 7900, CM_GROUP: TAR_CM, CM_ID: 1 is running


Instance ID: [PRS_FAILOVER]
PRS_FAILOVER_ext1 (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
PRS_FAILOVER_ext2 (2) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)
PRS_FAILOVER_apply1 (1) is running (prs_agent ID : tar_agent2, HOST: 10.10.10.64, PORT: 7900)
PRS_FAILOVER_llob (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)



4. Target_TAC1 DOWN

Target TAC에서 1번 노드에 대한 db & cm down 상황에서 CM Failover 동작을 확인합니다.

4-1. Target_TAC prosync 프로세스 상태 확인

-- target node#0 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      925564       1  1 08:33 ?        00:00:00 prs_agent tar_agent1
tibero      925866  479606  0 08:33 pts/1    00:00:00 grep --color=auto prs

-- target node#1 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      900667       1  0 07:46 ?        00:00:00 prs_agent tar_agent2
tibero      919319  900667  0 08:28 ?        00:00:00 prs_apply PRS_FAILOVER 1 tar_agent2
tibero      920441  764786  0 08:31 pts/2    00:00:00 grep --color=auto prs



4-2. Target_TAC1 DB & CM DOWN

-- target node#1 db down
$ tbdown immediate

Tibero instance terminated (IMMEDIATE mode).

-- target node#1 cm down
$ tbcm -d
CM DOWN SUCCESS!



4-3. Target_TAC prosync 프로세스 상태 확인

-- target node#0 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      925564       1  1 08:33 ?        00:00:00 prs_agent tar_agent1
tibero      925642  925564  0 08:33 ?        00:00:00 prs_apply PRS_FAILOVER 1 tar_agent1
tibero      925866  479606  0 08:33 pts/1    00:00:00 grep --color=auto prs

-- target node#1 prosync 프로세스 확인
$ ps -ef | grep prs
tibero      924889  479606  0 08:31 pts/1    00:00:00 grep --color=auto prs



4-4. prs_adm 상태 확인

$ prs_adm

ProSync 4 - Admin Utility

TmaxData Corporation Copyright (c) 2024-. All rights reserved.

Admin> status

prs_agent ID: src_agent1, HOST: 10.10.10.61, PORT: 7600, CM_GROUP: SRC_CM, CM_ID: 0 is running
prs_agent ID: src_agent2, HOST: 10.10.10.62, PORT: 7700, CM_GROUP: SRC_CM, CM_ID: 1 is running
prs_agent ID: tar_agent1, HOST: 10.10.10.63, PORT: 7800, CM_GROUP: TAR_CM, CM_ID: 0 is running
prs_agent ID: tar_agent2, HOST: 10.10.10.64, PORT: 7900, CM_GROUP: TAR_CM, CM_ID: 1 is stopped


Instance ID: [PRS_FAILOVER]
PRS_FAILOVER_ext1 (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
PRS_FAILOVER_ext2 (2) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)
PRS_FAILOVER_apply1 (1) is running (prs_agent ID : tar_agent1, HOST: 10.10.10.63, PORT: 7800)
PRS_FAILOVER_llob (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
