문서유형ㅣ기술정보

분야ㅣ설치

적용제품버전ㅣTibero 7FS04PS

문서번호ㅣPINTI009

개요

Source DB(TAC)에서 Target DB(TAC)로 단방향 동기화 구성에서 CM Failover 설정 방법에 대해 기술하였습니다.

본 문서는 "3편 CM Failover 설정"에 대해 기술하였습니다.

1편 : Prosync 설치 준비 및 Agent 설치
2편 : Instanct 설치
3편 : CM Failover 설정
4편 : CM Failover 테스트

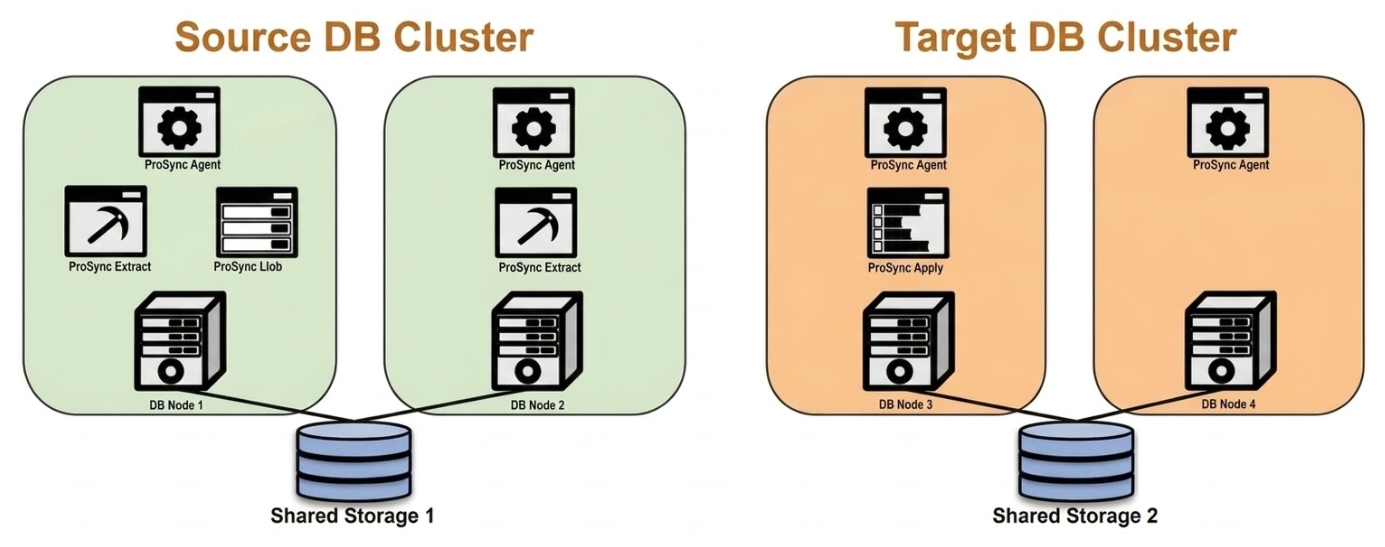

테스트 환경

구분	OS	IP	DBMS Version	Prosync Version
Source_TAC0	Rocky Linux release 8.10	10.10.10.61	Tibero 7.2.4 (build 305455)	4.6.0 (build 308985)
Source_TAC1	Rocky Linux release 8.10	10.10.10.62	Tibero 7.2.4 (build 305455)	4.6.0 (build 308985)
Target_TAC0	Rocky Linux release 8.10	10.10.10.63	Tibero 7.2.4 (build 305455)	4.6.0 (build 308985)
Target_TAC1	Rocky Linux release 8.10	10.10.10.64	Tibero 7.2.4 (build 305455)	4.6.0 (build 308985)

참고
Prosync CM Failover 기능은 Prosync 4.3 이상 버전부터 지원됩니다.

방법

CM FAILOVER 설정

DB & CM 종료

모든 서버 tibero 와 cm process를 종료합니다.

$ tbdown immediate

Tibero instance terminated (IMMEDIATE mode).

$ tbcm -d
CM DOWN SUCCESS!

$CM_SID.tip 파일 수정

$TB_HOME/config/$CM_SID.tip 맨 윗줄에 CM_ID 추가를 추가합니다. CM_ID는 agent 설치 시 prs_install_agent.cfg에 설정한 AGENT_CM_ID 기반으로 작성합니다.

vi $TB_HOME/config/$CM_SID.tip

############ TAC (Tibero Active Cluster)
#### must

## node1
CM_ID=0
CM_NAME=cm0
CM_UI_PORT=28629
CM_RESOURCE_FILE=/share/tibero_engine/config/cm0_res_file

### recommand
CM_HEARTBEAT_EXPIRE=300
CM_WATCHDOG_EXPIRE=290
CM_ENABLE_FAST_NET_ERROR_DETECTION=Y

CM & DB 기동

모든 서버의 cm과 tibero process를 기동합니다.

$ tbcm -b
CM Guard daemon started up.
import resources from '/share/tibero_engine/config/cm0_res_file'...

TBCM 7.1.1 (Build 305455)

TmaxTibero Corporation Copyright (c) 2020-. All rights reserved.

Tibero cluster manager started up.
Local node name is (cm0:28629).


$ tbboot
Change core dump dir to /share/tibero_engine/bin/prof.
Listener port = 8629

Tibero 7

TmaxTibero Corporation Copyright (c) 2020-. All rights reserved.
Tibero instance started up (NORMAL mode).

CM 확인

cmrctl show all을 이용하여 상태를 확인합니다.

$ cmrctl show all
Resource List of Node cm0
=====================================================================
  CLUSTER     TYPE        NAME       STATUS           DETAIL
----------- -------- -------------- -------- ------------------------
     COMMON  network           net0       UP (private) 10.10.10.61/29000
     COMMON  cluster           cls0       UP inc: net0, pub: N/A
       cls0     file         cls0:0       UP /share/tac/CMFILE/CMFILE
       cls0  service     source_tac       UP Database, Active Cluster (auto-restart: OFF)
       cls0       db    source_tac0 UP(NRML) source_tac, /share/tibero_engine, failed retry cnt: 0
=====================================================================
Resource List of Node cm1
=====================================================================
  CLUSTER     TYPE        NAME       STATUS           DETAIL
----------- -------- -------------- -------- ------------------------
     COMMON  network           net1       UP (private) 10.10.10.62/29000
     COMMON  cluster           cls0       UP inc: net1, pub: N/A
       cls0     file         cls0:0       UP /share/tac/CMFILE/CMFILE
       cls0  service     source_tac       UP Database, Active Cluster (auto-restart: OFF)
       cls0       db    source_tac1 UP(NRML) source_tac, /share/tibero_engine, failed retry cnt: 0
=====================================================================

CM GROUP 등록

agent 설치 시, prs_install_agent.cfg에 작성한 내용을 기반으로 CM GROUP을 추가합니다. 한쪽 노드에서만 수행합니다.

<구문>
cmrctl add group --name <group_name> --cname <cluser_name> --grptype <type> --failover <true|false>

<예시>
$ cmrctl add group --name SRC_CM --cname cls0 --grptype prosync
Resource add success! (group, SRC_CM)

$ cmrctl add group --name TAR_CM --cname cls0 --grptype prosync
Resource add success! (group, TAR_CM)

CM AGENT 등록

agent 설치 시, prs_install_agent.cfg에 작성한 내용을 기반으로 CM AGENT을 추가합니다. 양쪽 노드에서 각각 수행합니다.

<구문>
cmrctl add agent --name <agent_name> --grpname <group_name> --script <directory_path> --pubnet <public_network_resource_name> --retry_cnt <retry_cnt>

<예시>
$ cmrctl add agent --name src_agent1 --grpname SRC_CM --script $PRS_HOME/bin/prs_0.sh
Resource add success! (agent, src_agent1)

$ cmrctl add agent --name src_agent2 --grpname SRC_CM --script $PRS_HOME/bin/prs_1.sh
Resource add success! (agent, src_agent2)

$ cmrctl add agent --name tar_agent1 --grpname TAR_CM --script $PRS_HOME/bin/prs_0.sh
Resource add success! (agent, tar_agent1)

$ cmrctl add agent --name tar_agent2 --grpname TAR_CM --script $PRS_HOME/bin/prs_1.sh
Resource add success! (agent, tar_agent2)

CM 등록 확인

cmrctl show all 명령어를 이용하여 GROUP & AGENT 등록 상태를 확인합니다.

$ cmrctl show all
Resource List of Node cm0
=====================================================================
  CLUSTER     TYPE        NAME       STATUS           DETAIL
----------- -------- -------------- -------- ------------------------
     COMMON  network           net0       UP (private) 10.10.10.61/29000
     COMMON  cluster           cls0       UP inc: net0, pub: N/A
       cls0     file         cls0:0       UP /share/tac/CMFILE/CMFILE
       cls0  service     source_tac       UP Database, Active Cluster (auto-restart: OFF)
       cls0       db    source_tac0 UP(NRML) source_tac, /share/tibero_engine, failed retry cnt: 0
       cls0    group         SRC_CM     DOWN type: prosync (failover: ON)
       cls0    agent     src_agent1     DOWN /share/prosync4/bin/prs_0.sh, start retry cnt: 0
=====================================================================
Resource List of Node cm1
=====================================================================
  CLUSTER     TYPE        NAME       STATUS           DETAIL
----------- -------- -------------- -------- ------------------------
     COMMON  network           net1       UP (private) 10.10.10.62/29000
     COMMON  cluster           cls0       UP inc: net1, pub: N/A
       cls0     file         cls0:0       UP /share/tac/CMFILE/CMFILE
       cls0  service     source_tac       UP Database, Active Cluster (auto-restart: OFF)
       cls0       db    source_tac1 UP(NRML) source_tac, /share/tibero_engine, failed retry cnt: 0
       cls0    group         SRC_CM     DOWN type: prosync (failover: ON)
       cls0    agent     src_agent2     DOWN /share/prosync4/bin/prs_1.sh, start retry cnt: 0
=====================================================================

참고
agent가 DEACT 상태일 경우 $PRS_HOME/var/cmagent.log 를 확인하여 rc 결과값을 확인한다.
rc 127일 경우 $PRS_HOME/bin/prs_0.sh 의 실행 권한을 수정하거나 /bin/sh를 /bin/bash로 변경하면 해결된다.
deact 상태를 해제하는 명령어는 다음과 같다.
$ cmrctl act agent --name <AGENT_ID>

CM GROUP 기동

cm을 통해 prosync를 기동하고 failover 기능을 사용하기 위해 cm group을 기동합니다.

$ cmrctl start group --name SRC_CM
=================================== SUCCESS! ===================================
 Succeeded to request at each node to boot resources under the group(SRC_CM).
 Please use "cmrctl show group --name SRC_CM" to verify the result.
================================================================================

$ cmrctl show all
Resource List of Node cm0
=====================================================================
  CLUSTER     TYPE        NAME       STATUS           DETAIL
----------- -------- -------------- -------- ------------------------
     COMMON  network           net0       UP (private) 10.10.10.61/29000
     COMMON  cluster           cls0       UP inc: net0, pub: N/A
       cls0     file         cls0:0       UP /share/tac/CMFILE/CMFILE
       cls0  service     source_tac       UP Database, Active Cluster (auto-restart: OFF)
       cls0       db    source_tac0 UP(NRML) source_tac, /share/tibero_engine, failed retry cnt: 0
       cls0    group         SRC_CM       UP type: prosync (failover: ON)
       cls0    agent     src_agent1       UP /share/prosync4/bin/prs_0.sh, start retry cnt: 0
=====================================================================
Resource List of Node cm1
=====================================================================
  CLUSTER     TYPE        NAME       STATUS           DETAIL
----------- -------- -------------- -------- ------------------------
     COMMON  network           net1       UP (private) 10.10.10.62/29000
     COMMON  cluster           cls0       UP inc: net1, pub: N/A
       cls0     file         cls0:0       UP /share/tac/CMFILE/CMFILE
       cls0  service     source_tac       UP Database, Active Cluster (auto-restart: OFF)
       cls0       db    source_tac1 UP(NRML) source_tac, /share/tibero_engine, failed retry cnt: 0
       cls0    group         SRC_CM       UP type: prosync (failover: ON)
       cls0    agent     src_agent2       UP /share/prosync4/bin/prs_1.sh, start retry cnt: 0
=====================================================================

$ cmrctl start group --name TAR_CM
=================================== SUCCESS! ===================================
 Succeeded to request at each node to boot resources under the group(TAR_CM).
 Please use "cmrctl show group --name TAR_CM" to verify the result.
================================================================================

$ cmrctl show all
Resource List of Node cm0
=====================================================================
  CLUSTER     TYPE        NAME       STATUS           DETAIL
----------- -------- -------------- -------- ------------------------
     COMMON  network           net0       UP (private) 10.10.10.63/29000
     COMMON  cluster           cls0       UP inc: net0, pub: N/A
       cls0     file         cls0:0       UP /share/tac/CMFILE/CMFILE
       cls0  service     target_tac       UP Database, Active Cluster (auto-restart: OFF)
       cls0       db    target_tac0 UP(NRML) target_tac, /share/tibero_engine, failed retry cnt: 0
       cls0    group         TAR_CM       UP type: prosync (failover: ON)
       cls0    agent     tar_agent1       UP /share/prosync4/bin/prs_0.sh, start retry cnt: 0
=====================================================================
Resource List of Node cm1
=====================================================================
  CLUSTER     TYPE        NAME       STATUS           DETAIL
----------- -------- -------------- -------- ------------------------
     COMMON  network           net1       UP (private) 10.10.10.64/29000
     COMMON  cluster           cls0       UP inc: net1, pub: N/A
       cls0     file         cls0:0       UP /share/tac/CMFILE/CMFILE
       cls0  service     target_tac       UP Database, Active Cluster (auto-restart: OFF)
       cls0       db    target_tac1 UP(NRML) target_tac, /share/tibero_engine, failed retry cnt: 0
       cls0    group         TAR_CM       UP type: prosync (failover: ON)
       cls0    agent     tar_agent2       UP /share/prosync4/bin/prs_1.sh, start retry cnt: 0
=====================================================================

prosync 기동 확인

prosync admin process를 통해 prosync 기동 상태를 확인합니다.

$ prs_adm

ProSync 4 - Admin Utility

TmaxData Corporation Copyright (c) 2024-. All rights reserved.

Admin> status

prs_agent ID: src_agent1, HOST: 10.10.10.61, PORT: 7600, CM_GROUP: SRC_CM, CM_ID: 0 is running
prs_agent ID: src_agent2, HOST: 10.10.10.62, PORT: 7700, CM_GROUP: SRC_CM, CM_ID: 1 is running
prs_agent ID: tar_agent1, HOST: 10.10.10.63, PORT: 7800, CM_GROUP: TAR_CM, CM_ID: 0 is running
prs_agent ID: tar_agent2, HOST: 10.10.10.64, PORT: 7900, CM_GROUP: TAR_CM, CM_ID: 1 is running


Instance ID: [PRS_FAILOVER]
PRS_FAILOVER_ext1 (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
PRS_FAILOVER_ext2 (2) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)
PRS_FAILOVER_apply1 (1) is running (prs_agent ID : tar_agent1, HOST: 10.10.10.63, PORT: 7800)
PRS_FAILOVER_llob (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
