Method

1. Shut down the operating TSC No observer

Shut down standby node
$ tbdown immediate

Shut down primary node
$ tbdown immediate

2. Add observer OS account

1) Create observer account on Standby Node

$ useradd -g dba obs

2) Create tibero7 binaries for observer account

$ su - obs
$ gzip -dc tibero7-bin-FS02_PS02-aix_7.1-281152-20241024103828.tar.gz | tar xvf -

3) Set observer .profile

export TB_HOME=/home/obs/tibero7
export TB_PROF_DIR=$TB_HOME/bin/prof
export PATH=.:$TB_HOME/bin:$TB_HOME/client/bin:$JAVA_HOME:$PATH
export LD_LIBRARY_PATH=$TB_HOME/lib:$TB_HOME/client/lib:$LD_LIBRARY_PATH

### Cluster Manager ENV
export CM_HOME=$TB_HOME
export CM_SID=observer

3. Add parameters to primary db tip file

1) Primary Node

#----------------------------------------------
# OBSERVER
#----------------------------------------------
STANDBY_USE_OBSERVER=Y
CM_PORT=33039

LOCAL_CLUSTER_ADDR=192.168.1.212
LOCAL_CLUSTER_PORT=33029

4. Add cm.tip

1) Primary DB

vi $TB_HOME/config/primary.tip

CM_NAME=primary
CM_UI_PORT=33039
CM_RESOURCE_FILE=/data/pub1/kiw/tsc/tibero7/config/cm_res.ref

CM_HEARTBEAT_EXPIRE=300
CM_WATCHDOG_EXPIRE=290

2) Standby DB

vi $TB_HOME/config/standby.tip

CM_NAME=standby
CM_UI_PORT=33039
CM_RESOURCE_FILE=/data/pub1/kiw/tsc/tibero7/config/cm_res.ref

CM_HEARTBEAT_EXPIRE=300
CM_WATCHDOG_EXPIRE=290

3) Observer cm.tip

vi $TB_HOME/config/observer.tip

CM_NAME=observer
CM_MODE_OBSERVER=Y
CM_OBSERVER_PORT=5310
CM_UI_PORT=55039

4. Configure tbdsn.tbr

1) Primary Node

$ vi $TB_HOME/client/config/tbdsn.tbr

tsc1=(
    (INSTANCE=(HOST=localhost)
              (PORT=3310)
              (DB_NAME=tsc)
    )
)

2) Standby Node

$ vi $TB_HOME/client/config/tbdsn.tbr

tsc2=(
    (INSTANCE=(HOST=localhost)
              (PORT=3310)
              (DB_NAME=tsc)
    )
)

5. Register cm resource

$ tbcm -b
$ cmrctl

6. Verification procedure after TSC setup

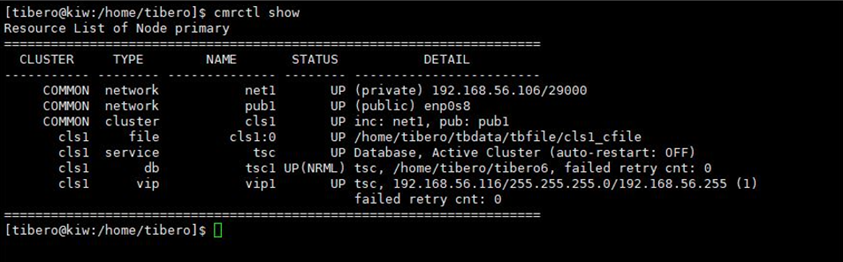

1) Primary Node

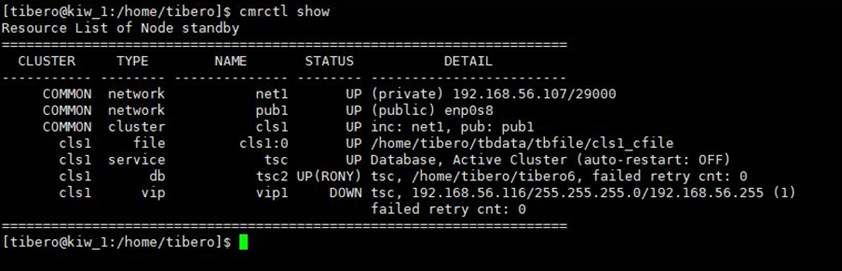

2) Standby Node
