Prosync TAC to TAC Unidirectional Synchronization CM Failover Setup-4

Document Type | Technical Information

Category | Installation

Applicable Product Version | Tibero 7FS04PS

Document Number | PINTI010



Overview

This document describes how to configure CM Failover in a unidirectional synchronization setup from Source DB (TAC) to Target DB (TAC).
This document covers "Part 4 CM Failover Testing".
  • Part 1: Prosync Installation Preparation and Agent Installation
  • Part 2: Instanct Installation
  • Part 3: CM Failover Configuration
  • Part 4: CM Failover Testing

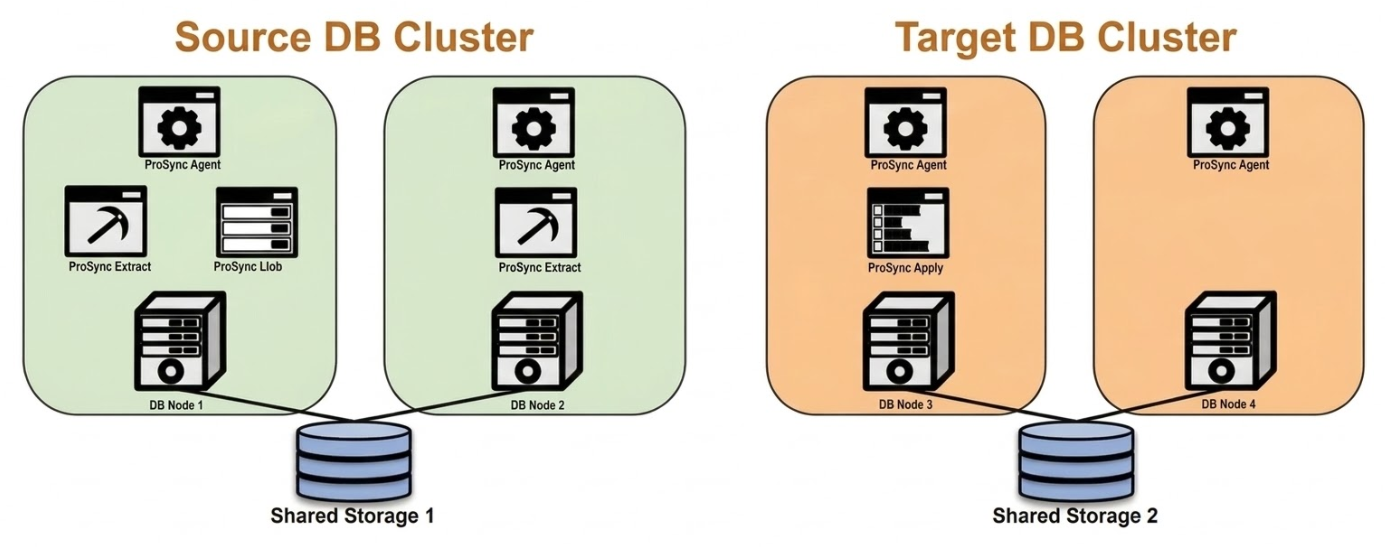

Test Environment

CategoryOSIPDBMS VersionProsync Version
Source_TAC0Rocky Linux release 8.10 10.10.10.61Tibero 7.2.4 (build 305455)4.6.0 (build 308985)
Source_TAC1Rocky Linux release 8.10 10.10.10.62Tibero 7.2.4 (build 305455)4.6.0 (build 308985)
Target_TAC0Rocky Linux release 8.10 10.10.10.63Tibero 7.2.4 (build 305455)4.6.0 (build 308985)
Target_TAC1Rocky Linux release 8.10 10.10.10.64Tibero 7.2.4 (build 305455)4.6.0 (build 308985)

Note

The Prosync CM Failover feature is supported from Prosync version 4.3 and above.





Method

CM Failover Testing

1. Source_TAC0 DOWN

Check CM Failover operation when the DB & CM of node 0 on Source TAC is down.

1-1. Check Source_TAC prosync process status

-- Check prosync process on source node#0
$ ps -ef | grep prs
tibero      965072       1  0 07:45 ?        00:00:00 prs_agent src_agent1
tibero      965151  965072  0 07:45 ?        00:00:00 prs_ext PRS_FAILOVER 1 src_agent1
tibero      965165  965072  0 07:45 ?        00:00:00 prs_llob PRS_FAILOVER 1 src_agent1
tibero      970098  846411  0 07:50 pts/2    00:00:00 grep --color=auto prs

-- Check prosync process on source node#1
$ ps -ef | grep prs
tibero      954562       1  0 07:45 ?        00:00:00 prs_agent src_agent2
tibero      954621  954562  0 07:45 ?        00:00:00 prs_ext PRS_FAILOVER 2 src_agent2
tibero      959694  471337  0 07:51 pts/0    00:00:00 grep --color=auto prs



1-2. Source_TAC0 DB & CM DOWN

-- source node#0 db down
$ tbdown immediate

Tibero instance terminated (IMMEDIATE mode).

-- source node#0 cm down
$ tbcm -d
CM DOWN SUCCESS!



1-3. Check Source_TAC prosync process status

-- Check prosync process on source node#0
$ ps -ef | grep prs
tibero      970966  846411  0 07:51 pts/2    00:00:00 grep --color=auto prs

-- Check prosync process on source node#1
$  ps -ef | grep prs
tibero      954562       1  0 07:45 ?        00:00:00 prs_agent src_agent2
tibero      954621  954562  0 07:45 ?        00:00:00 prs_ext PRS_FAILOVER 2 src_agent2
tibero      960366  954562 11 07:51 ?        00:00:02 prs_ext PRS_FAILOVER 1 src_agent2
tibero      960370  954562  0 07:51 ?        00:00:00 prs_llob PRS_FAILOVER 1 src_agent2
tibero      960746  471337  0 07:52 pts/0    00:00:00 grep --color=auto prs



1-4. Check prs_adm status

$ prs_adm

ProSync 4 - Admin Utility

TmaxData Corporation Copyright (c) 2024-. All rights reserved.

Admin> status

prs_agent ID: src_agent1, HOST: 10.10.10.61, PORT: 7600, CM_GROUP: SRC_CM, CM_ID: 0 is stopped
prs_agent ID: src_agent2, HOST: 10.10.10.62, PORT: 7700, CM_GROUP: SRC_CM, CM_ID: 1 is running
prs_agent ID: tar_agent1, HOST: 10.10.10.63, PORT: 7800, CM_GROUP: TAR_CM, CM_ID: 0 is running
prs_agent ID: tar_agent2, HOST: 10.10.10.64, PORT: 7900, CM_GROUP: TAR_CM, CM_ID: 1 is running


Instance ID: [PRS_FAILOVER]
PRS_FAILOVER_ext1 (1) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)
PRS_FAILOVER_ext2 (2) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)
PRS_FAILOVER_apply1 (1) is running (prs_agent ID : tar_agent1, HOST: 10.10.10.63, PORT: 7800)
PRS_FAILOVER_llob (1) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)

Note

After CM failover occurs, ext1 starts on the opposite node 2 server, but looking at the ext log, there are cases where synchronization does not occur as it searches for *.tlr files as below.

[03-09T00:26:39.209893] [REA-05] [I] txinfo found (/root/prosync4/var/PRS_FAILOVER/lr1/redo_data_13_0.tlr)
[03-09T00:26:39.210079] [REA-05] [I] tli opened (flag:0x04, logblk_size:512, logblk_cnt:8)
[03-09T00:26:39.210119] [REA-05] [E] tli_load_txinfo failed (rc:-3) [prs_ext_tread.c:1072]
  • Cause: When using the CM Failover feature, the Prosync binary and TAC redo, Archivelog files must be located on a shared filesystem accessible by both nodes.



2. Source_TAC1 DOWN

Check CM Failover operation when the DB & CM of node 1 on Source TAC is down.

2-1. Check Source_TAC prosync process status

-- Check prosync process on source node#0
$ ps -ef | grep prs
tibero      965072       1  0 07:45 ?        00:00:00 prs_agent src_agent1
tibero      965151  965072  0 07:45 ?        00:00:00 prs_ext PRS_FAILOVER 1 src_agent1
tibero      965165  965072  0 07:45 ?        00:00:00 prs_llob PRS_FAILOVER 1 src_agent1
tibero      970098  846411  0 07:50 pts/2    00:00:00 grep --color=auto prs

-- Check prosync process on source node#1
$ ps -ef | grep prs
tibero      954562       1  0 07:45 ?        00:00:00 prs_agent src_agent2
tibero      954621  954562  0 07:45 ?        00:00:00 prs_ext PRS_FAILOVER 2 src_agent2
tibero      959694  471337  0 07:51 pts/0    00:00:00 grep --color=auto prs



2-2. Source_TAC1 DB & CM DOWN

-- source node#1 db down
$ tbdown immediate

Tibero instance terminated (IMMEDIATE mode).

-- source node#1 cm down
$ tbcm -d
CM DOWN SUCCESS!



2-3. Check Source_TAC prosync process status

-- Check prosync process on source node#0
$ ps -ef | grep prs
tibero      978366       1  0 08:27 ?        00:00:00 prs_agent src_agent1
tibero      978476  978366  0 08:27 ?        00:00:01 prs_ext PRS_FAILOVER 1 src_agent1
tibero      978484  978366  0 08:27 ?        00:00:00 prs_llob PRS_FAILOVER 1 src_agent1
tibero      990974  978366 13 08:39 ?        00:00:00 prs_ext PRS_FAILOVER 2 src_agent1
tibero      991056  846411  0 08:40 pts/2    00:00:00 grep --color=auto prs

-- Check prosync process on source node#1
$ ps -ef | grep prs
tibero      970966  846411  0 07:51 pts/2    00:00:00 grep --color=auto prs



2-4. Check prs_adm status

$ prs_adm

ProSync 4 - Admin Utility

TmaxData Corporation Copyright (c) 2024-. All rights reserved.

Admin> status

prs_agent ID: src_agent1, HOST: 10.10.10.61, PORT: 7600, CM_GROUP: SRC_CM, CM_ID: 0 is running
prs_agent ID: src_agent2, HOST: 10.10.10.62, PORT: 7700, CM_GROUP: SRC_CM, CM_ID: 1 is stopped
prs_agent ID: tar_agent1, HOST: 10.10.10.63, PORT: 7800, CM_GROUP: TAR_CM, CM_ID: 0 is running
prs_agent ID: tar_agent2, HOST: 10.10.10.64, PORT: 7900, CM_GROUP: TAR_CM, CM_ID: 1 is running


Instance ID: [PRS_FAILOVER]
PRS_FAILOVER_ext1 (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
PRS_FAILOVER_ext2 (2) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
PRS_FAILOVER_apply1 (1) is running (prs_agent ID : tar_agent1, HOST: 10.10.10.63, PORT: 7800)
PRS_FAILOVER_llob (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)



3. Target_TAC0 DOWN

Check CM Failover operation when the DB & CM of node 0 on Target TAC is down.

3-1. Check Target_TAC prosync process status

-- Check prosync process on target node#0
$ ps -ef | grep prs
tibero      925564       1  1 08:33 ?        00:00:00 prs_agent tar_agent1
tibero      925642  925564  0 08:33 ?        00:00:00 prs_apply PRS_FAILOVER 1 tar_agent1
tibero      925866  479606  0 08:33 pts/1    00:00:00 grep --color=auto prs

-- Check prosync process on target node#1
$ ps -ef | grep prs
tibero      921553       1 15 08:34 ?        00:00:00 prs_agent tar_agent2
tibero      921629  764786  0 08:34 pts/2    00:00:00 grep --color=auto prs



3-2. Target_TAC0 DB & CM DOWN

-- target node#1 db down
$ tbdown immediate

Tibero instance terminated (IMMEDIATE mode).

-- target node#1 cm down
$ tbcm -d
CM DOWN SUCCESS!



3-3. Check Target_TAC prosync process status

-- Check prosync process on target node#0
$ ps -ef | grep prs
tibero      924889  479606  0 08:31 pts/1    00:00:00 grep --color=auto prs

-- Check prosync process on target node#1
$ ps -ef | grep prs
tibero      900667       1  0 07:46 ?        00:00:00 prs_agent tar_agent2
tibero      919319  900667  0 08:28 ?        00:00:00 prs_apply PRS_FAILOVER 1 tar_agent2
tibero      920441  764786  0 08:31 pts/2    00:00:00 grep --color=auto prs



3-4. Check prs_adm status

$ prs_adm

ProSync 4 - Admin Utility

TmaxData Corporation Copyright (c) 2024-. All rights reserved.

Admin> status

prs_agent ID: src_agent1, HOST: 10.10.10.61, PORT: 7600, CM_GROUP: SRC_CM, CM_ID: 0 is running
prs_agent ID: src_agent2, HOST: 10.10.10.62, PORT: 7700, CM_GROUP: SRC_CM, CM_ID: 1 is running
prs_agent ID: tar_agent1, HOST: 10.10.10.63, PORT: 7800, CM_GROUP: TAR_CM, CM_ID: 0 is stopped
prs_agent ID: tar_agent2, HOST: 10.10.10.64, PORT: 7900, CM_GROUP: TAR_CM, CM_ID: 1 is running


Instance ID: [PRS_FAILOVER]
PRS_FAILOVER_ext1 (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
PRS_FAILOVER_ext2 (2) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)
PRS_FAILOVER_apply1 (1) is running (prs_agent ID : tar_agent2, HOST: 10.10.10.64, PORT: 7900)
PRS_FAILOVER_llob (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)



4. Target_TAC1 DOWN

Check CM Failover operation when the DB & CM of node 1 on Target TAC is down.

4-1. Check Target_TAC prosync process status

-- Check prosync process on target node#0
$ ps -ef | grep prs
tibero      925564       1  1 08:33 ?        00:00:00 prs_agent tar_agent1
tibero      925866  479606  0 08:33 pts/1    00:00:00 grep --color=auto prs

-- Check prosync process on target node#1
$ ps -ef | grep prs
tibero      900667       1  0 07:46 ?        00:00:00 prs_agent tar_agent2
tibero      919319  900667  0 08:28 ?        00:00:00 prs_apply PRS_FAILOVER 1 tar_agent2
tibero      920441  764786  0 08:31 pts/2    00:00:00 grep --color=auto prs



4-2. Target_TAC1 DB & CM DOWN

-- target node#1 db down
$ tbdown immediate

Tibero instance terminated (IMMEDIATE mode).

-- target node#1 cm down
$ tbcm -d
CM DOWN SUCCESS!



4-3. Check Target_TAC prosync process status

-- Check prosync process on target node#0
$ ps -ef | grep prs
tibero      925564       1  1 08:33 ?        00:00:00 prs_agent tar_agent1
tibero      925642  925564  0 08:33 ?        00:00:00 prs_apply PRS_FAILOVER 1 tar_agent1
tibero      925866  479606  0 08:33 pts/1    00:00:00 grep --color=auto prs

-- Check prosync process on target node#1
$ ps -ef | grep prs
tibero      924889  479606  0 08:31 pts/1    00:00:00 grep --color=auto prs



4-4. Check prs_adm status

$ prs_adm

ProSync 4 - Admin Utility

TmaxData Corporation Copyright (c) 2024-. All rights reserved.

Admin> status

prs_agent ID: src_agent1, HOST: 10.10.10.61, PORT: 7600, CM_GROUP: SRC_CM, CM_ID: 0 is running
prs_agent ID: src_agent2, HOST: 10.10.10.62, PORT: 7700, CM_GROUP: SRC_CM, CM_ID: 1 is running
prs_agent ID: tar_agent1, HOST: 10.10.10.63, PORT: 7800, CM_GROUP: TAR_CM, CM_ID: 0 is running
prs_agent ID: tar_agent2, HOST: 10.10.10.64, PORT: 7900, CM_GROUP: TAR_CM, CM_ID: 1 is stopped


Instance ID: [PRS_FAILOVER]
PRS_FAILOVER_ext1 (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
PRS_FAILOVER_ext2 (2) is running (prs_agent ID : src_agent2, HOST: 10.10.10.62, PORT: 7700)
PRS_FAILOVER_apply1 (1) is running (prs_agent ID : tar_agent1, HOST: 10.10.10.63, PORT: 7800)
PRS_FAILOVER_llob (1) is running (prs_agent ID : src_agent1, HOST: 10.10.10.61, PORT: 7600)
