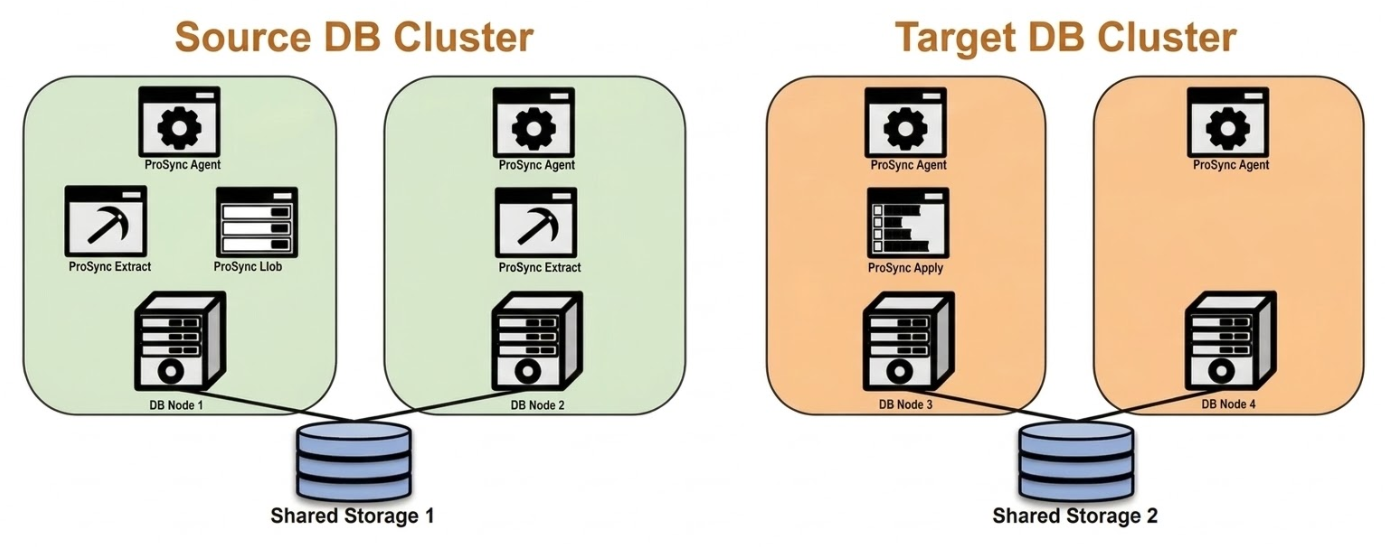

Overview

Method

Instance Installation

tbdsn.tbr Configuration

Set alias and IP according to the server environment. For source/target DB aliases, configure for redundancy.

vi $TB_HOME/client/config/tbdsn.tbr

source_tac0=(
  (INSTANCE=(HOST=localhost)
  (PORT=8629)
  (DB_NAME=source_tac)
  )
)

source_tac1=(
  (INSTANCE=(HOST=10.10.10.62)
  (PORT=8629)
  (DB_NAME=source_tac)
  )
)


SRC_DB=(
  (INSTANCE=(HOST=localhost)
  (PORT=8629)
  (DB_NAME=source_tac)
  )
  (INSTANCE=(HOST=10.10.10.62)
  (PORT=8629)
  (DB_NAME=source_tac)
  )
)

TAR_DB=(
  (INSTANCE=(HOST=10.10.10.63)
  (PORT=8629)
  (DB_NAME=target_tac)
  )
  (INSTANCE=(HOST=10.10.10.64)
  (PORT=8629)
  (DB_NAME=target_tac)
  )
)

Tables to Synchronize

Set the tables to be synchronized.

$ cp $PRS_HOME/install/templates/prs_obj_group1.list.template $PRS_HOME/install/prs_obj_group1.list
$ vi $PRS_HOME/install/prs_obj_group1.list

TEST.T1
TEST.T2
TEST.T3

# Or TEST.%     # All tables under TEST user

Installation Parameter Configuration

Configure prs_install.cfg as below for instance installation. (Execute only on one node of the source DB.)

$ cp $PRS_HOME/install/templates/prs_install.cfg.template $PRS_HOME/install/prs_install.cfg
$ vi $PRS_HOME/install/prs_install.cfg

# Prosync Instance Settings
INSTANCE_ID=PRS_FAILOVER
PRS_USER=prosync
PRS_PWD=prosync

# Prosync Process Settings
AGENT_LIST_DELIMITER=,
EXT_CNT=2
EXT_AGENT_ID_LIST_0=src_agent1,src_agent2
EXT_AGENT_ID_LIST_1=src_agent2,src_agent1
APPLY_PORT=7620
APPLY_AGENT_ID_LIST=tar_agent1,tar_agent2
LLOB_PORT=7630
LLOB_AGENT_ID_LIST=src_agent1,src_agent2

# Source DB Settings
SRC_DB_TYPE=TIBERO
SRC_DB_NAME=SRC_DB
SRC_INSTALL_USER=sys
SRC_INSTALL_PWD=tibero
SRC_DB_CNT=2
SRC_DB_ALIAS_0=source_tac0
SRC_DB_ALIAS_1=source_tac1

# Target DB Settings
TAR_DB_TYPE=TIBERO
TAR_DB_NAME=TAR_DB
TAR_INSTALL_USER=sys
TAR_INSTALL_PWD=tibero
TAR_DB_CNT=2

Run Instance Install Script

After configuring prs_install.cfg, run the installation script as shown below.

$ . $PRS_HOME/install/prs_install.sh

********************************************************************************
* Check System Parameters (1/5)
********************************************************************************
Checking system type... Linux
Checking PRS_HOME... /share/prosync4
Checking TB_HOME... /share/tibero_engine
Checking ORACLE_HOME... not found
Checking psql ... not available

********************************************************************************
* Check Installation Parameters (2/5)
********************************************************************************
Checking configuration file... ok
Checking prs_instance.map file... ok
Checking Instance Id from prs_instance.map...
* instance information for PRS_FAILOVER was not found. It will be written in this script...
ok
Checking proecsses infos...
* Checking Ext processes Informations... EXT_CNT: 2
* Delimiter: [,]
   * Ext[0] process's Agent Id List
       * Agent ID[src_agent1]
       * [src_agent1] found.
       * Agent ID[src_agent2]
       * [src_agent2] found.
   * Ext[1] process's Agent Id List
       * Agent ID[src_agent2]
       * [src_agent2] found.
       * Agent ID[src_agent1]
       * [src_agent1] found.
* Checking Apply process Informations...
* Checking Apply Port..
   * APPLY_PORT=[7620]
* Checking Apply process's Agent Id List..
       * Agent ID[tar_agent1]
       * [tar_agent1] found.
       * Agent ID[tar_agent2]
       * [tar_agent2] found.
* Checking Llob process Informations...
* Checking Llob Port..
   * LLOB_PORT=[7630]
* Checking Llob process's Agent Id List..
       * Agent ID[src_agent1]
       * [src_agent1] found.
       * Agent ID[src_agent2]
       * [src_agent2] found.

Checking INSTANCE_ID... PRS_FAILOVER
Checking PRS_USER... prosync
Checking PRS_TS_NAME... PRS_FAILOVER_ts
Checking PRS_TS_FILE... PRS_FAILOVER_ts.dtf
Checking PRS_TS_SIZE... 1G
Checking PRS_EXT_IP... %
Checking PRS_APPLY_IP... %
Checking SRC_DB_CNT... 2
Checking SRC_DB_TYPE... TIBERO
Checking SRC_INSTALL_USER... sys
Checking SRC_DB_NAME... SRC_DB
    Checking SRC_DB_ALIAS_0... source_tac0
    Checking SRC_DB_ALIAS_1... source_tac1
Checking source connection(1/2)... ok
Checking source connection(2/2)... ok
_list_create: Variable TAR_DB_IP_0 is undefined or empty.
_list_create: Variable TAR_DB_PORT_0 is undefined or empty.
Checking TAR_DB_TYPE... TIBERO
Checking TAR_INSTALL_USER... sys
Checking TAR_DB_NAME... TAR_DB
Checking target connection [TAR_DB](1/2)... ok
Checking target connection [TAR_DB](2/2)... ok

********************************************************************************
* Install to Source Database (3/5)
********************************************************************************
Checking archived log mode... ok
Checking log mining parameters [source_tac0]... ok
Checking log mining parameters [source_tac1]... ok
Get Archive log directory [source_tac0]... ok
Get Archive log format [source_tac0]... ok
Get Archive log directory [source_tac1]... ok
Get Archive log format [source_tac1]... ok
Dropping ProSync objects... ok
Dropping ProSync tablespace... DROP TABLESPACE PRS_FAILOVER_ts INCLUDING CONTENTS AND DATAFILES;

done

ok
Creating ProSync tablespace... ok
Dropping ProSync user... ok
Creating ProSync user... ok
Granting privileges... ok
Granting privileges for trigger... ok
Creating ProSync internal tables... ok
Creating ProSync internal package... ok
Creating ProSync internal trigger... ok
Prosync user prosync to uppercase PROSYNC... ok
Checking source object file(group num : 1)... ok
Building source object for TEST.T1... ok
Building source object for TEST.T2... ok
Building source object for TEST.T3... ok
Adding table supplemental log... 4, and one for prosync
  "PROSYNC"."PRS_DUMMY_TBL" : Supplemental logging set
  "TEST"."T1" : Supplemental logging set
  "TEST"."T2" : Supplemental logging set
  "TEST"."T3" : Supplemental logging set
  prosync.PRS_DUMMY_TBL : supplemental log already exists, continue.
Counting total source objects... 4
Generating initial DDL history... ok
Checking initial DDL history... ok
Insert default value in PRS_DUMMY_TBL...ok
ok
Querying NLS_CHARACTERSET... UTF8
Querying NLS_NCHAR_CHARACTERSET... UTF16
Switching logfile [source_tac0]... ok
Switching logfile [source_tac1]... ok
Querying current log sequence [source_tac0]... 9
Querying current log sequence [source_tac1]... 5
Querying current snapshot#... 176172

********************************************************************************
* Install to Target Database (4/5)
********************************************************************************
Dropping ProSync objects... ok
Dropping ProSync tablespace... DROP TABLESPACE PRS_FAILOVER_ts INCLUDING CONTENTS AND DATAFILES;

done

ok
Creating ProSync tablespace... ok
Dropping ProSync user... ok
Creating ProSync user... ok
Granting privileges... ok
Creating ProSync internal tables... ok
Generating initial construct history [source_tac0 (group 1)]... ok
Generating initial construct history [source_tac1 (group 1)]... ok
Generating initial commit history... ok

********************************************************************************
* Generate Configuration Parameters (5/5)
********************************************************************************
Generating Wallet... ok
Generating Extract [source_tac0] configuration...  ok
Generating Extract [source_tac1] configuration...  ok
Generating Apply [TAR_DB] configuration...  ok
Generating Apply [TAR_DB] configuration...  ok
Generating LONG/LOB configuration...  ok
Generating instance map to prs_instance.map ...
mv: overwrite '/share/prosync4/config/prs_instance.map'? y


********************************************************************************
* ProSync is installed successfully on Fri, 06 Mar 2026 03:36:40 +0000.
*
*   PRS_HOME     = /share/prosync4
*   Binary Path  = /share/prosync4/bin
*   ProSync User = prosync
*
*   Archived Log Path     = /share/tac/tbarch0/
*   Archived Log Format   = log-t%t-r%r-s%s.arc
*   Initial log sequence# = 9
*
*   Archived Log Path     = /share/tac/tbarch1/
*   Archived Log Format   = log-t%t-r%r-s%s.arc
*   Initial log sequence# = 5
*
*   Initial change# (TSN) = 176172
*
********************************************************************************

Verify Instance Installation Results

Once installation is complete, you can check the result files in the following path.

$ cd $PRS_HOME/config
$ ls -al
total 60
drwxr-xr-x 3 tibero dba 4096 Mar  9 05:15 .
drwxr-xr-x 8 tibero dba 4096 Mar  6 00:24 ..
-rw-r--r-- 1 tibero dba  512 Mar  6 03:36 PRS_FAILOVER_apply1.cfg
-rw-r--r-- 1 tibero dba  512 Mar  6 03:36 PRS_FAILOVER_apply2.cfg
-rw-r--r-- 1 tibero dba  519 Mar  9 05:06 PRS_FAILOVER_ext1.cfg
-rw-r--r-- 1 tibero dba  519 Mar  9 05:06 PRS_FAILOVER_ext2.cfg
-rw-r--r-- 1 tibero dba  431 Mar  6 03:36 PRS_FAILOVER_llob.cfg
-rw-r--r-- 1 tibero dba  310 Mar  6 04:17 prs_adm.cfg
-rw-r--r-- 1 tibero dba 1018 Mar  9 05:07 prs_agent_src_agent1.cfg
-rw-r--r-- 1 tibero dba 1012 Mar  9 05:07 prs_agent_src_agent2.cfg
-rw-r--r-- 1 tibero dba 1010 Mar  6 04:46 prs_agent_tar_agent1.cfg
-rw-r--r-- 1 tibero dba 1010 Mar  6 04:46 prs_agent_tar_agent2.cfg
-rw-r--r-- 1 tibero dba  728 Mar  6 03:36 prs_instance.map
drwxr-xr-x 2 tibero dba 4096 Mar  6 04:38 templates
-rw-rw-r-- 1 tibero dba    4 Jan 20 06:16 variant


$ cat $PRS_HOME/config/prs_instance.map

AGENT=(ID=src_agent1)(HOST=10.10.10.61)(PORT=7600)(CM_GROUP=SRC_CM)(CM_ID=0)
AGENT=(ID=src_agent2)(HOST=10.10.10.62)(PORT=7700)(CM_GROUP=SRC_CM)(CM_ID=1)
AGENT=(ID=tar_agent1)(HOST=10.10.10.63)(PORT=7800)(CM_GROUP=TAR_CM)(CM_ID=0)
AGENT=(ID=tar_agent2)(HOST=10.10.10.64)(PORT=7900)(CM_GROUP=TAR_CM)(CM_ID=1)

PRS_FAILOVER=(
    EXT1=(AGENT=src_agent1)(AGENT=src_agent2)(PROGRAM=prs_ext)
    EXT2=(AGENT=src_agent2)(AGENT=src_agent1)(PROGRAM=prs_ext)
    APPLY1=(AGENT=tar_agent1)(AGENT=tar_agent2)(PORT=7620)(PROGRAM=prs_apply)
    LLOB=(AGENT=src_agent1)(AGENT=src_agent2)(PORT=7630)(PROGRAM=prs_llob)
)

Copy Prosync Configuration Files

Copy the prosync config and var folders to each server (Source TAC1, Target TAC0,1).

After copying, modify the environment settings according to each server's path.
