Document Type | Technical Information

Category | Installation

Applicable Product Version | Tibero 7.2.4

Document Number | TINTI039

Overview

1. What is TAC?

TAC (Tibero Active Cluster) is an Active-Active type cluster that binds multiple Tiberos for a single DB workload.
TAC automatically fail-overs to a normally operating node in case of failures in the DB engine, OS, system, or public network, maintaining an uninterrupted system and enabling quick recovery.
Depending on the workload, it can be configured as a large-scale triple-node cluster beyond dual redundancy to deliver optimal performance when handling large volumes of data.
TAC allows flexible capacity adjustment through horizontal scaling of active nodes and improves system performance by minimizing disk I/O using Global Cache.

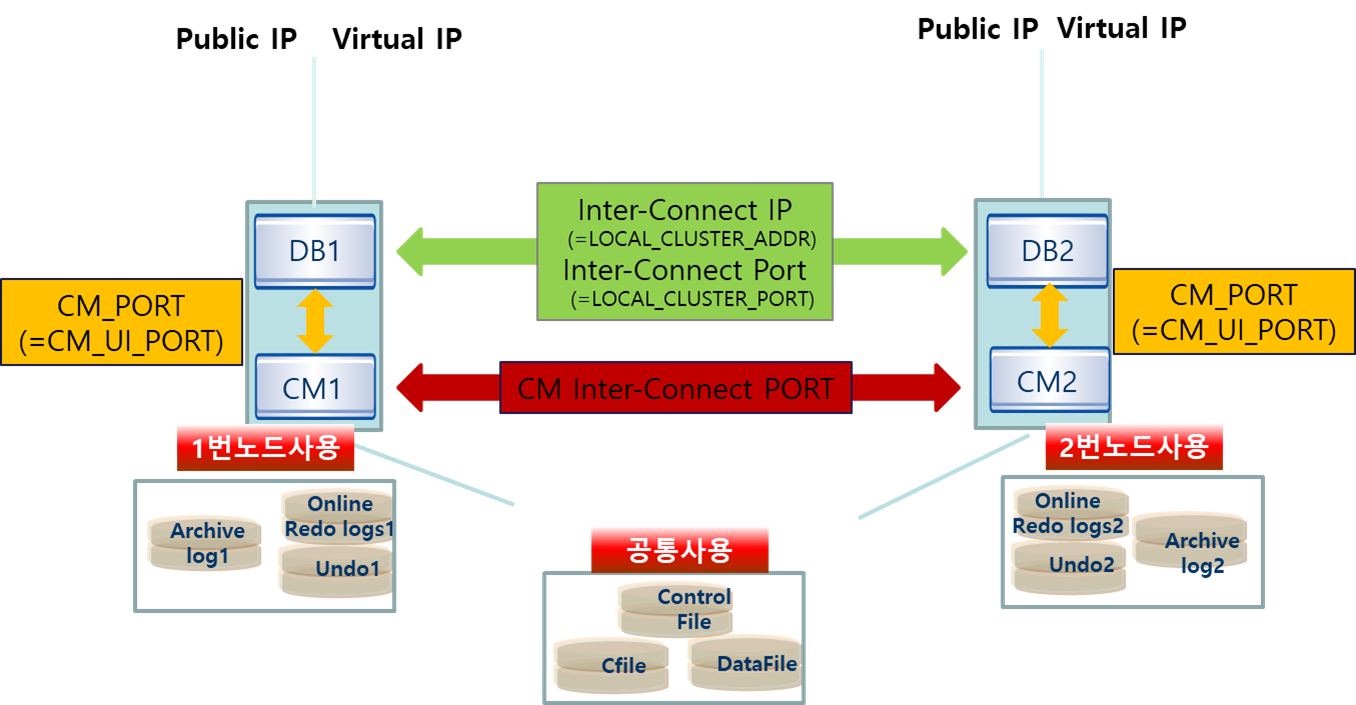

2. TAC Installation Architecture

Method

TAC Installation (using raw device)

1. Installation Environment

1) Installation Steps

Step	Item	Description
1	Basic Setup	Environment variables, CM, Tibero tip settings
2	Cluster Membership Layer Setup	Process of connecting each node into a cluster
3	Cluster Resource Layer Setup	Process of registering resources used by nodes
4	DB Configuration	DB configuration

1-2) Node Environment

Item		Node 1	Node 2	Description
OS	hostname	tibero0	tibero1	Hostname of each server
OS	User	tibero	tibero	OS user where Tibero is installed
TAC	SID	tibero0	tibero1	Tibero Instance Name
	DB_NAME	tibero		Tibero Database Name
	LISTENER_PORT	8629	8629	Tibero Listener Port
	Public IP	192.168.50.120 NIC: enps3	192.168.50.122 NIC: enps3	Public IP
	LOCAL_CLUSTER_ADDR	10.10.10.120	10.10.10.122	Inter-Connect IP
	LOCAL_CLUSTER_PORT	18629	18629	Communication port between Tibero nodes
	CM_PORT	28629	28629	Communication for cmrctl commands and Tibero↔CM communication
CM	SID	cm0	cm1	TBCM SID
	CM Inter-Connect PORT	29000	29000	Communication port between TBCM nodes (defined when running cmrctl add command)
	CM_UI_PORT	28629	28629	Port to connect to TBCM for status check when running cmrctl commands

1-3) Environment Variables

Node 1

Node 2

(tibero)$ cat .bash_profile

### Tibero ENV ###
export TB_HOME=/home/tibero/tibero7
export TB_SID=tibero0
export PATH=$TB_HOME/bin:$TB_HOME/client/bin:$PATH
export LD_LIBRARY_PATH=$TB_HOME/lib:$TB_HOME/client/lib:$LD_LIBRARY_PATH

### Tibero Cluster Manager ENV ###
export CM_SID=cm0
export CM_HOME=$TB_HOME

(tibero)$ cat .bash_profile

### Tibero ENV ###
export TB_HOME=/home/tibero/tibero7
export TB_SID=tibero1
export PATH=$TB_HOME/bin:$TB_HOME/client/bin:$PATH
export LD_LIBRARY_PATH=$TB_HOME/lib:$TB_HOME/client/lib:$LD_LIBRARY_PATH

### Tibero Cluster Manager ENV ###
export CM_SID=cm1
export CM_HOME=$TB_HOME

1-4) Raw Device Check

Raw devices have the following characteristics:

Applications access directly without going through the OS
Not mounted on Linux Filesystem
Character Device
Uses one device as if it were a single file

However, because raw devices are used like files, they are more difficult to manage than filesystems.

Raw devices are used as shown below:

[root@tibero ~]# lsblk
NAME                 MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT

sdb                    8:16   0  100G  0 disk
└─sdb1                 8:17   0  100G  0 part
  ├─datavg-control1  253:5    0  100M  0 lvm
  ├─datavg-control2  253:6    0  100M  0 lvm
  ├─datavg-redo001   253:7    0  300M  0 lvm
  ├─datavg-redo011   253:8    0  300M  0 lvm
  ├─datavg-redo021   253:9    0  300M  0 lvm
  ├─datavg-redo002   253:10   0  300M  0 lvm
  ├─datavg-redo012   253:11   0  300M  0 lvm
  ├─datavg-redo022   253:12   0  300M  0 lvm
  ├─datavg-redo101   253:13   0  300M  0 lvm
  ├─datavg-redo111   253:14   0  300M  0 lvm
  ├─datavg-redo121   253:15   0  300M  0 lvm
  ├─datavg-redo102   253:16   0  300M  0 lvm
  ├─datavg-redo112   253:17   0  300M  0 lvm
  ├─datavg-redo122   253:18   0  300M  0 lvm
  ├─datavg-system001 253:19   0  300M  0 lvm
  ├─datavg-temp001   253:20   0  300M  0 lvm
  ├─datavg-usr001    253:21   0  300M  0 lvm
  ├─datavg-syssub    253:22   0  300M  0 lvm
  ├─datavg-undo0     253:23   0  300M  0 lvm
  ├─datavg-undo1     253:24   0  300M  0 lvm
  ├─datavg-cfile1    253:25   0  300M  0 lvm
  └─datavg-cfile2    253:26   0  300M  0 lvm


[root@tibero ~]# vi /etc/udev/rules.d/tac.rules
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="control1",  RUN+="/bin/raw /dev/raw/raw1 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="control2",  RUN+="/bin/raw /dev/raw/raw2 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo001",   RUN+="/bin/raw /dev/raw/raw3 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo011",   RUN+="/bin/raw /dev/raw/raw4 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo021",   RUN+="/bin/raw /dev/raw/raw5 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo002",   RUN+="/bin/raw /dev/raw/raw6 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo012",   RUN+="/bin/raw /dev/raw/raw7 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo022",   RUN+="/bin/raw /dev/raw/raw8 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo101",   RUN+="/bin/raw /dev/raw/raw9 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo111",   RUN+="/bin/raw /dev/raw/raw10 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo121",   RUN+="/bin/raw /dev/raw/raw11 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo102",   RUN+="/bin/raw /dev/raw/raw12 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo112",   RUN+="/bin/raw /dev/raw/raw13 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="redo122",   RUN+="/bin/raw /dev/raw/raw14 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="system001", RUN+="/bin/raw /dev/raw/raw15 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="temp001",   RUN+="/bin/raw /dev/raw/raw16 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="usr001",    RUN+="/bin/raw /dev/raw/raw17 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="syssub",    RUN+="/bin/raw /dev/raw/raw18 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="undo0",     RUN+="/bin/raw /dev/raw/raw19 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="undo1",     RUN+="/bin/raw /dev/raw/raw20 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="cfile1",    RUN+="/bin/raw /dev/raw/raw21 %N"
ACTION=="add|change",ENV{DM_VG_NAME}=="datavg",ENV{DM_LV_NAME}=="cfile2",    RUN+="/bin/raw /dev/raw/raw22 %N"
ACTION=="add",KERNEL=="raw*",OWNER="tibero",GROUP="dba",MODE="0660"
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――

2. Installation

2-1) $CM.tip Configuration

Node 1

Node 2

(tibero)$ vi $TB_HOME/config/$CM_SID.tip

CM_NAME=cm0
CM_UI_PORT=28629
CM_RESOURCE_FILE=/home/tibero/tibero7/config/cm0_res_file ## Local area of each node

(tibero)$ vi $TB_HOME/config/$CM_SID.tip

CM_NAME=cm1
CM_UI_PORT=28629
CM_RESOURCE_FILE=/home/tibero/tibero7/config/cm1_res_file ## Local area of each node

2-2) $TB.tip Configuration

Node 1

Node 2

(tibero)$ vi $TB_HOME/config/$TB_SID.tip

DB_NAME=tibero
LISTENER_PORT=8629
CONTROL_FILES="/dev/raw/raw1","/dev/raw/raw2"
DB_CREATE_FILE_DEST="/home/tibero/tibero7/tbdata" ## Parameter not used, written arbitrarily

############Memory & Session###################
TOTAL_SHM_SIZE=2G
MEMORY_TARGET=4G
MAX_SESSION_COUNT=20
LOG_BUFFER=10M

########cluster################
THREAD=0
UNDO_TABLESPACE=UNDO0
CLUSTER_DATABASE=Y
LOCAL_CLUSTER_ADDR=10.10.10.121
LOCAL_CLUSTER_PORT=18629
CM_PORT=28629

(tibero)$ vi $TB_HOME/config/$TB_SID.tip

DB_NAME=tibero
LISTENER_PORT=8629
CONTROL_FILES="/dev/raw/raw1","/dev/raw/raw2"
DB_CREATE_FILE_DEST="/home/tibero/tibero7/tbdata" ## Parameter not used, written arbitrarily

############Memory & Session###################
TOTAL_SHM_SIZE=2G
MEMORY_TARGET=4G
MAX_SESSION_COUNT=20
LOG_BUFFER=10M

########cluster################
THREAD=1
UNDO_TABLESPACE=UNDO1
CLUSTER_DATABASE=Y
LOCAL_CLUSTER_ADDR=10.10.10.122
LOCAL_CLUSTER_PORT=18629
CM_PORT=28629

2-3) tbdsn.tbr Configuration

Node 1

Node 2

(tibero)$ vi $TB_HOME/client/config/tbdsn.tbr

tibero0=(
(INSTANCE=(HOST=localhost)
(PORT=8629)
(DB_NAME=tibero)
)
)

(tibero)$ vi $TB_HOME/client/config/tbdsn.tbr

tibero0=(
(INSTANCE=(HOST=localhost)
(PORT=8629)
(DB_NAME=tibero)
)
)

2-4) Register CM Membership Layer Resources

Node	Item	Command
Node 1	Start TBCM	(tibero)$ tbcm -b # Run as root if VIP is used
	Register Network	(tibero)$ cmrctl add network --name net0 --ipaddr 10.10.10.121 --portno 29000 (tibero)$ cmrctl add network --name pub0 --nettype public --ifname enp0s3
	Register Cluster	(tibero)$ cmrctl add cluster --name cls0 --incnet net0 --pubnet pub0 --cfile "/dev/raw/raw21,/dev/raw/raw22"
	Start Cluster	(tibero)$ cmrctl start cluster --name cls0
Node 2	Start TBCM	(tibero)$ tbcm -b # Run as root if VIP is used
	Register Network	(tibero)$ cmrctl add network --name net1 --ipaddr 10.10.10.122 --portno 29000 (tibero)$ cmrctl add network --name pub1 --nettype public --ifname enp0s3
	Register Cluster	(tibero)$ cmrctl add cluster --name cls0 --incnet net1 --pubnet pub1 --cfile "/dev/raw/raw21,/dev/raw/raw22"
	Start Cluster	(tibero)$ cmrctl start cluster --name cls0

2-5) Register CM Resource Layer Resources

Since the service is shared, registration is omitted on Node 2.

Node	Item	Command
Node 1	Register DB Service	(tibero)$ cmrctl add service --name tibero --cname cls0 --type db
	Register DB	(tibero)$ cmrctl add db --name tibero0 --svcname tibero --dbhome $TB_HOME --envfile $HOME/.bash_profile
	Register VIP	(tibero)$ cmrctl add vip --name vip0 --node cm0 --svcname tibero --ipaddr 192.168.50.126/255.255.255.0 --bcast 192.168.50.255
Node 2	Register DB	(tibero)$ cmrctl add db --name tibero1 --svcname tibero --dbhome $TB_HOME --envfile $HOME/.bash_profile
Node 2	Register VIP	(tibero)$ cmrctl add vip --name vip1 --node cm1 --svcname tibero --ipaddr 192.168.50.127/255.255.255.0 --bcast 192.168.50.255

Note
VIP registration is not mandatory, and if registered, TBCM must be started with root privileges.

VIP registration command
cmrctl add vip --name <vip_name> --node <cm_sid> --svcname <database_name> --ipaddr <virtual_IP>/<Netmask> --bcase <broadcast>

2-6) Create DB

Node	Item	Command
Node 1	Start DB nomount	(tibero)$ tbboot nomount (or cmrctl start db --name tibero0 --option "-t nomount")
	Create DB	(tibero)$ tbsql sys/tibero SQL> create database user sys identified by tibero character set UTF8 -- UTF8, EUCKR, ASCII, MSWIN949 logfile group 0 ('/dev/raw/raw3','/dev/raw/raw6') size 300M, group 1 ('/dev/raw/raw4','/dev/raw/raw7') size 300M, group 2 ('/dev/raw/raw5','/dev/raw/raw8') size 300M maxdatafiles 1024 maxlogfiles 100 maxlogmembers 8 archivelog datafile '/dev/raw/raw15' size 100m autoextend on default temporary tablespace TEMP tempfile '/dev/raw/raw16' size 100m autoextend on next 32M default tablespace USR datafile '/dev/raw/raw17' size 100m autoextend on undo tablespace UNDO0 datafile '/dev/raw/raw19' size 100m autoextend on next 32M syssub datafile '/dev/raw/raw18' size 10m reuse autoextend on ;
	Start DB	(tibero)$ tbboot
	Run system_install.sh	(tibero)$ sh $TB_HOME/scripts/system_install.sh -p1 tibero -p2 syscat
	Add Undo and Redo on Node 2	(tibero)$ tbsql sys/tibero SQL> create undo tablespace UNDO1 datafile '/dev/raw/raw20' size 100m autoextend on next 32M; SQL> alter database add logfile thread 1 group 3 ('/dev/raw/raw9', '/dev/raw/raw12') size 300M; SQL> alter database add logfile thread 1 group 4 ('/dev/raw/raw10', '/dev/raw/raw13') size 300M; SQL> alter database add logfile thread 1 group 5 ('/dev/raw/raw11', '/dev/raw/raw14') size 300M;
	Activate Node 2	SQL> alter database enable public thread 1 ;
Node 2	Start DB	(tibero)$ tbboot

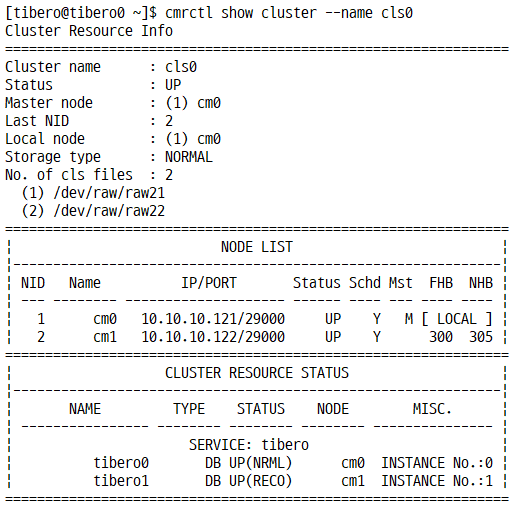

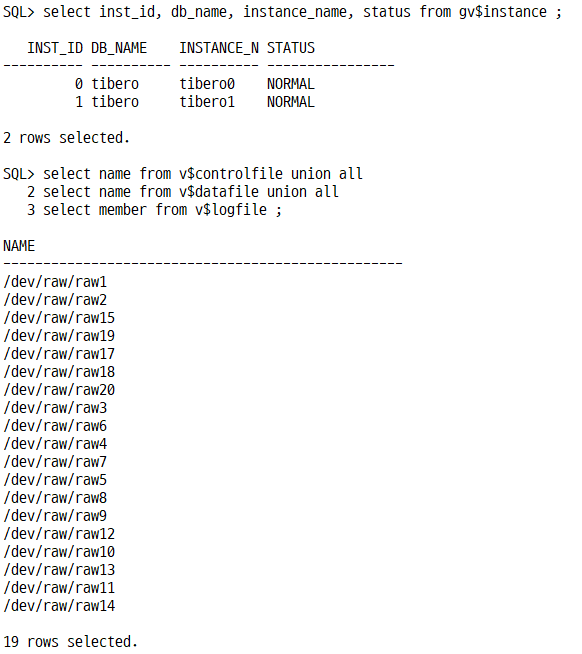

2-7) Verification

Reference

1. $CM_SID.tip Configuration

Item	Required or Not	Description
CM_NAME	Required	Name used as node identifier when creating a cluster. Different nodes must have different values.
CM_UI_PORT	Required	Network port number used to connect to CM when executing cmrctl commands.
CM_RESOURCE_FILE	Required	Path of the CM resource file.
LOG_LVL_CM	Optional	Specifies the logging level of CM. Higher values cause CM to save more logs. Accepts integer values from 1 to 6. (Default: 2)
CM_LOG_DEST	Optional	Directory where CM logs are saved. Must be an absolute path. (Default: $CM_HOME/instance/$CM_SID/)
CM_HEARTBEAT_EXPIRE	Optional	Standard time for CM to detect issues in other CM nodes. After this time, the cluster member is considered out (unit: seconds, default: 300)
CM_WATCHDOG_EXPIRE	Optional	Expiration period when watchdog function is enabled between Tibero and CM. If CM does not operate within this time, Tibero automatically shuts down. Must be less than CM_HEARTBEAT_EXPIRE (unit: seconds, default: 290)
CM_FENCE	Optional	Determines whether to run the CM fence daemon. If CM performs I/O longer than the time specified in CM_WATCHDOG_EXPIRE, other CMs exclude this CM's node from the cluster, requiring the node to reboot the OS. The CM Guard daemon prevents I/O on that node and requires root privileges to reboot. To enable this (set to Y), CM must run as root. Default: N
